SaM - Thevenim and Norton Equivalent

Memory Card

---

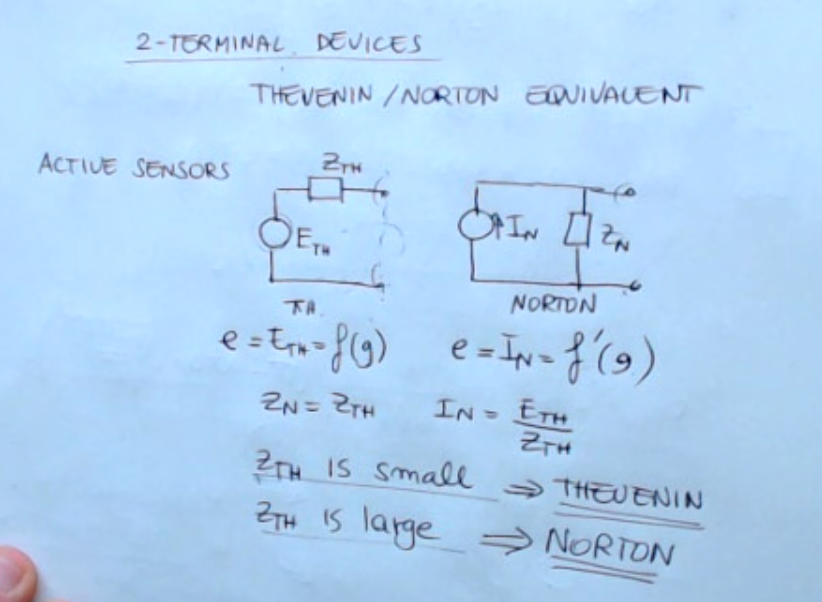

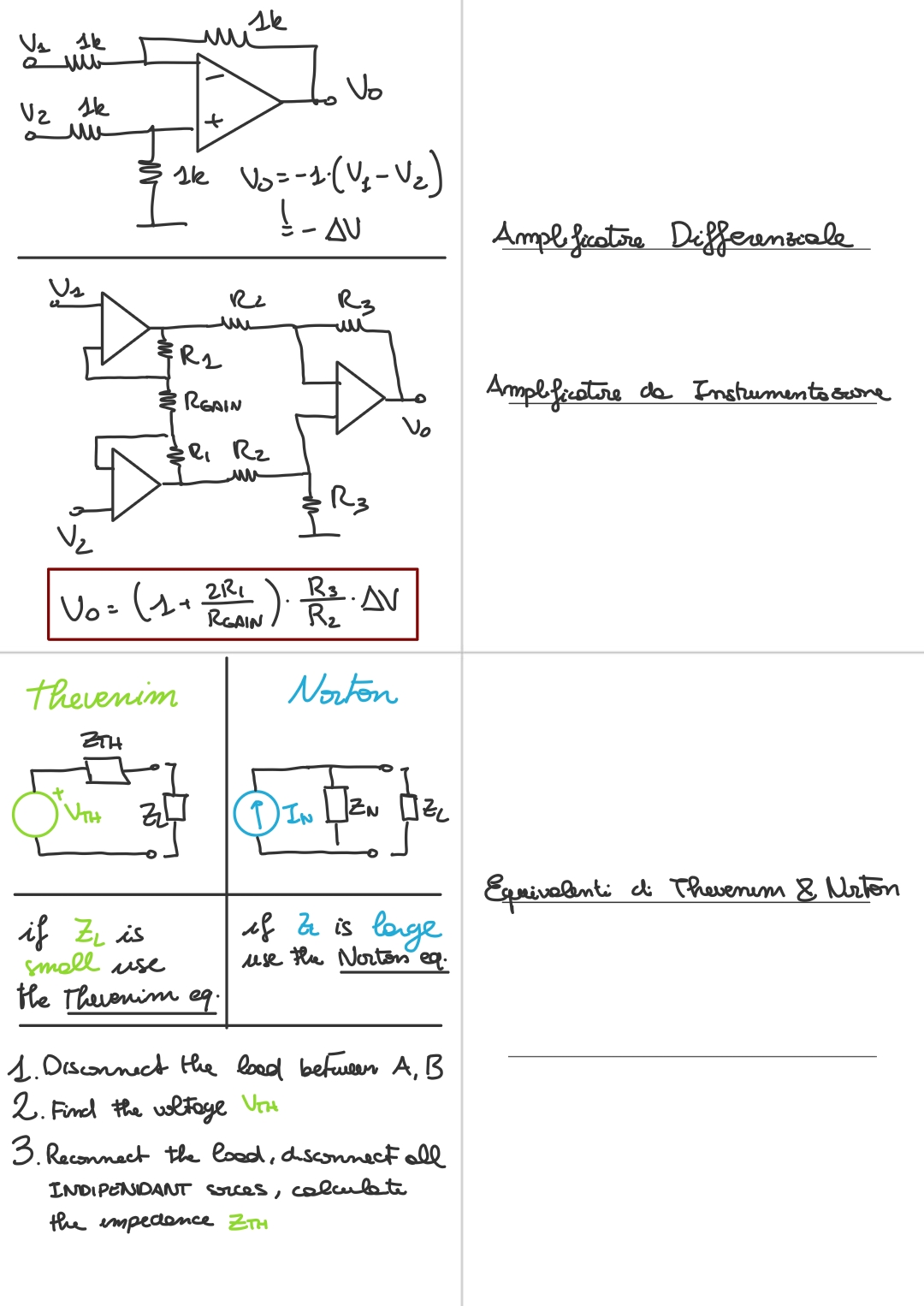

==And obviously, the most simple choice is to use the Thevenim or Northon equivalent, which you can use for any type of two terminal linear network==.

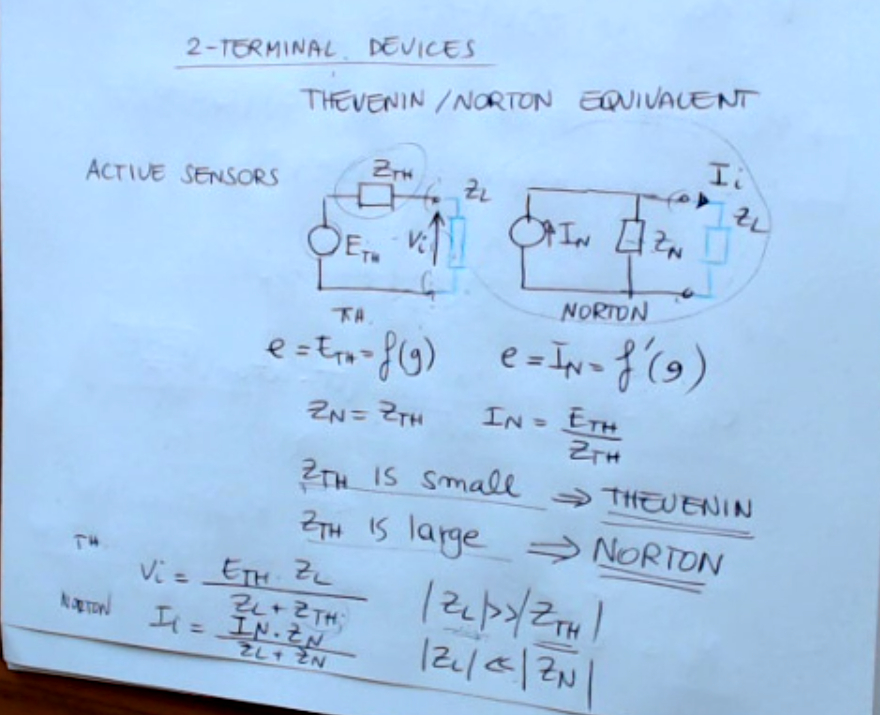

==So in case $Z_{TH}=Z_N$ is very large, better to use this Norton equivalent, understand that the sensor will be better described by a current generator and not with a voltage generator, and best thing is trying to amplify a current instead of amplifying a voltage==.

---

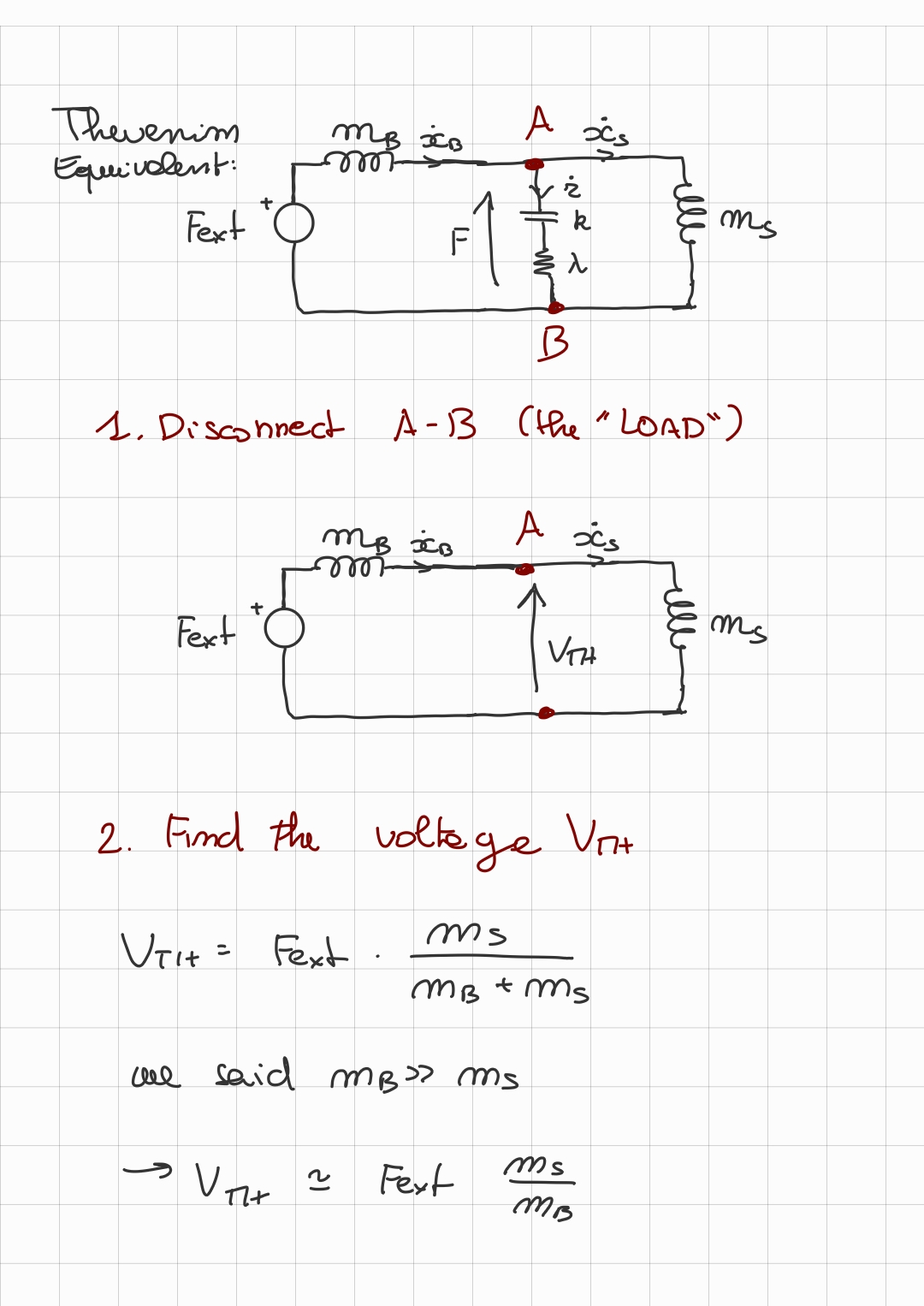

Here’s an example on how to find the Thevenim Equivalent:

1. Disconnect A-B (“the load”).
2. Find the voltage $V_{TH}$.

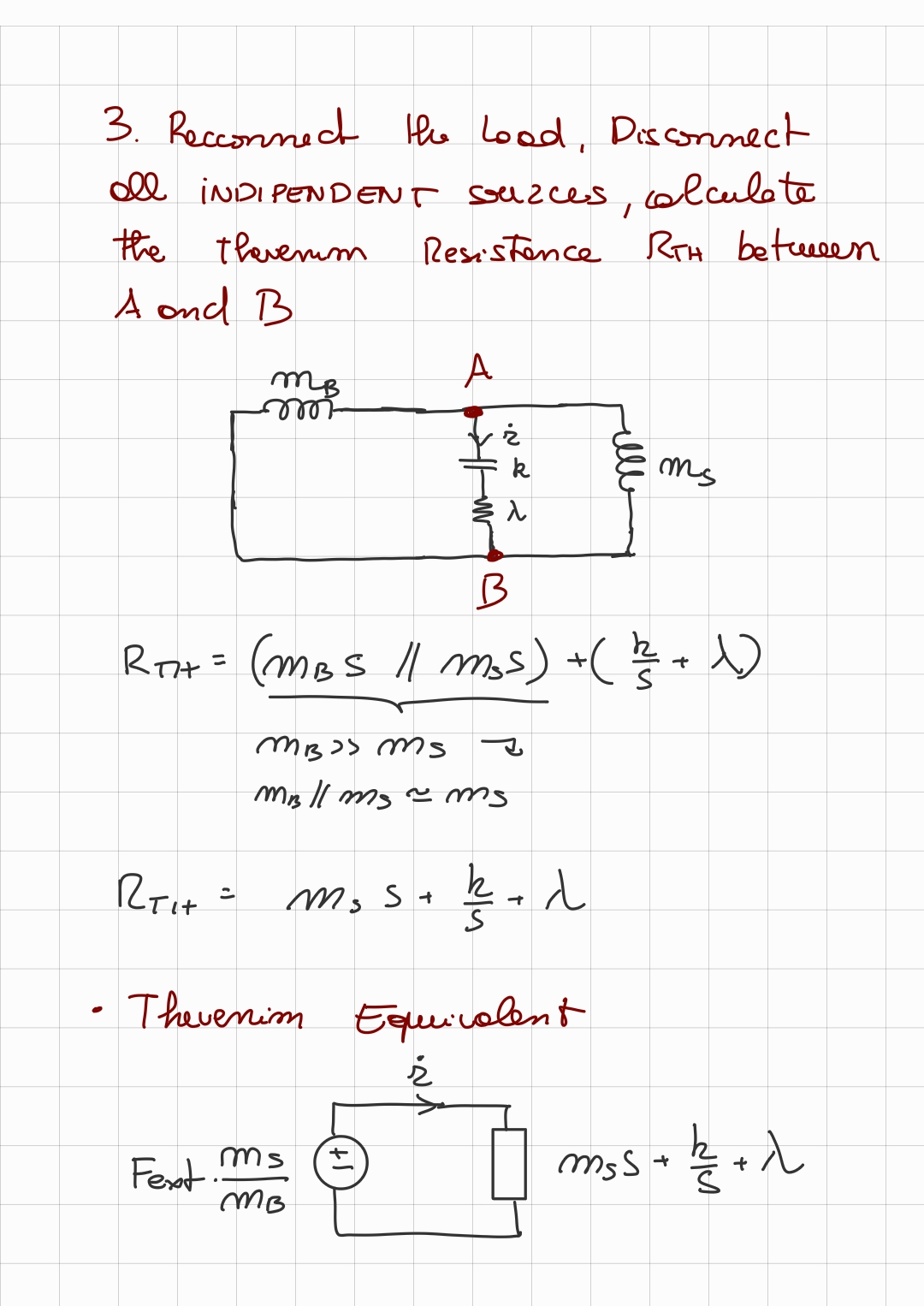

3. Reconect the load, disconnect all indipendent sources, and calculate the Thevenim resistance ($R_{TH}$) between A and B.
