SaM - Pitot Tube

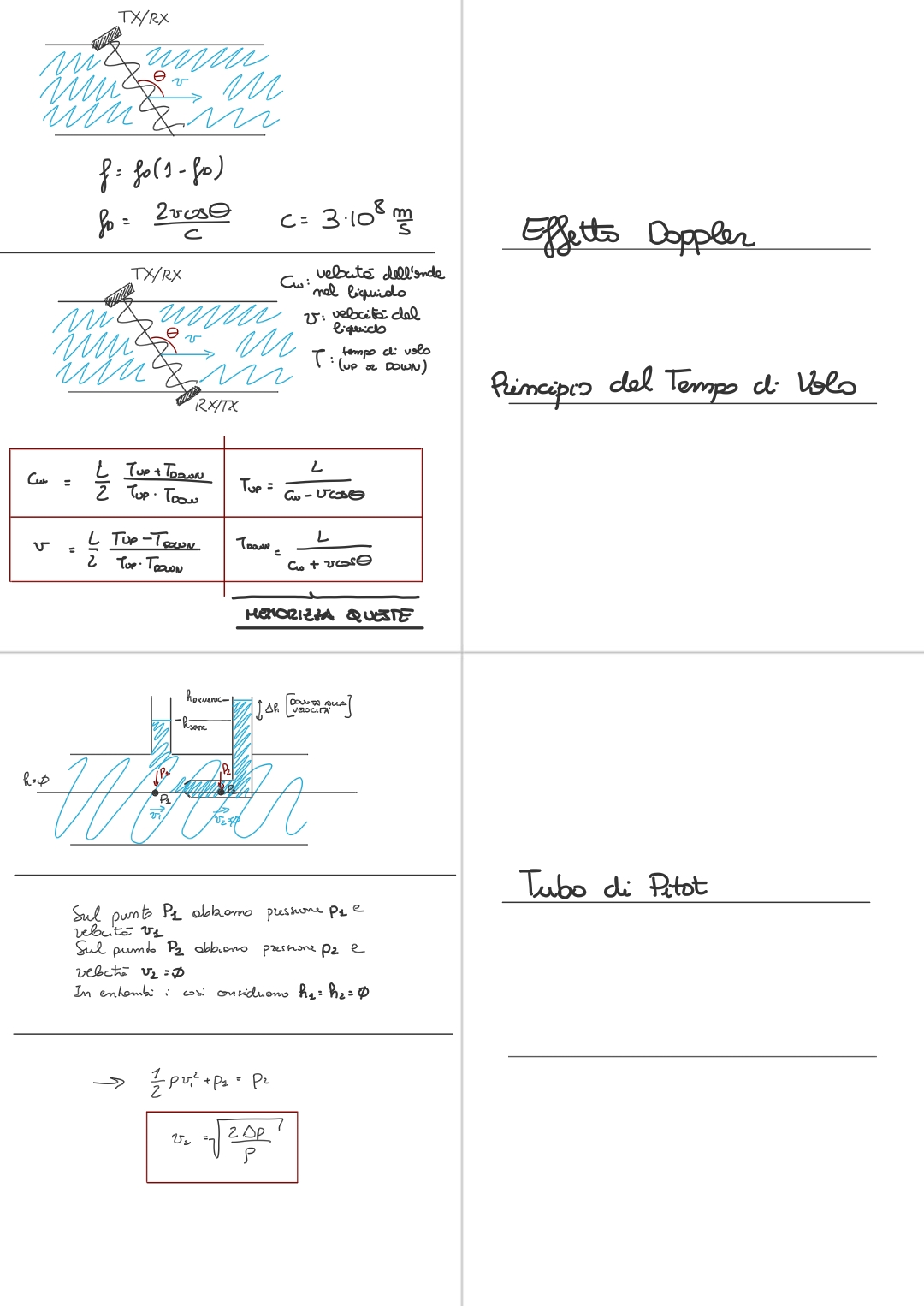

Remeber:

Structure:

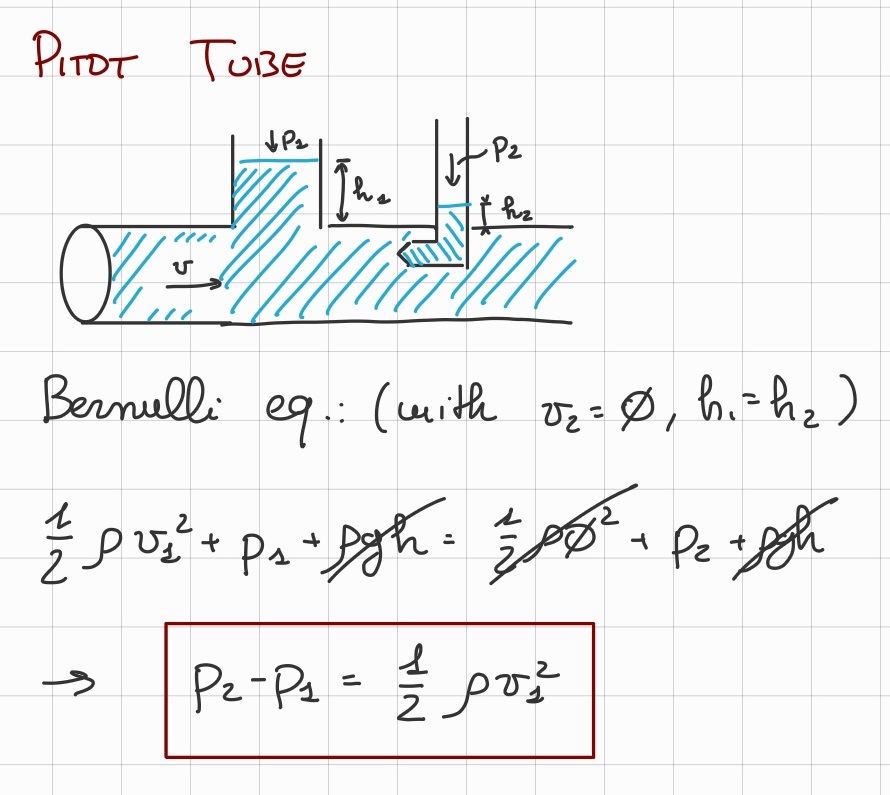

(One tube has static preassure, used as reference, the other is open and its preassure varies due to the velocity of the fluid)

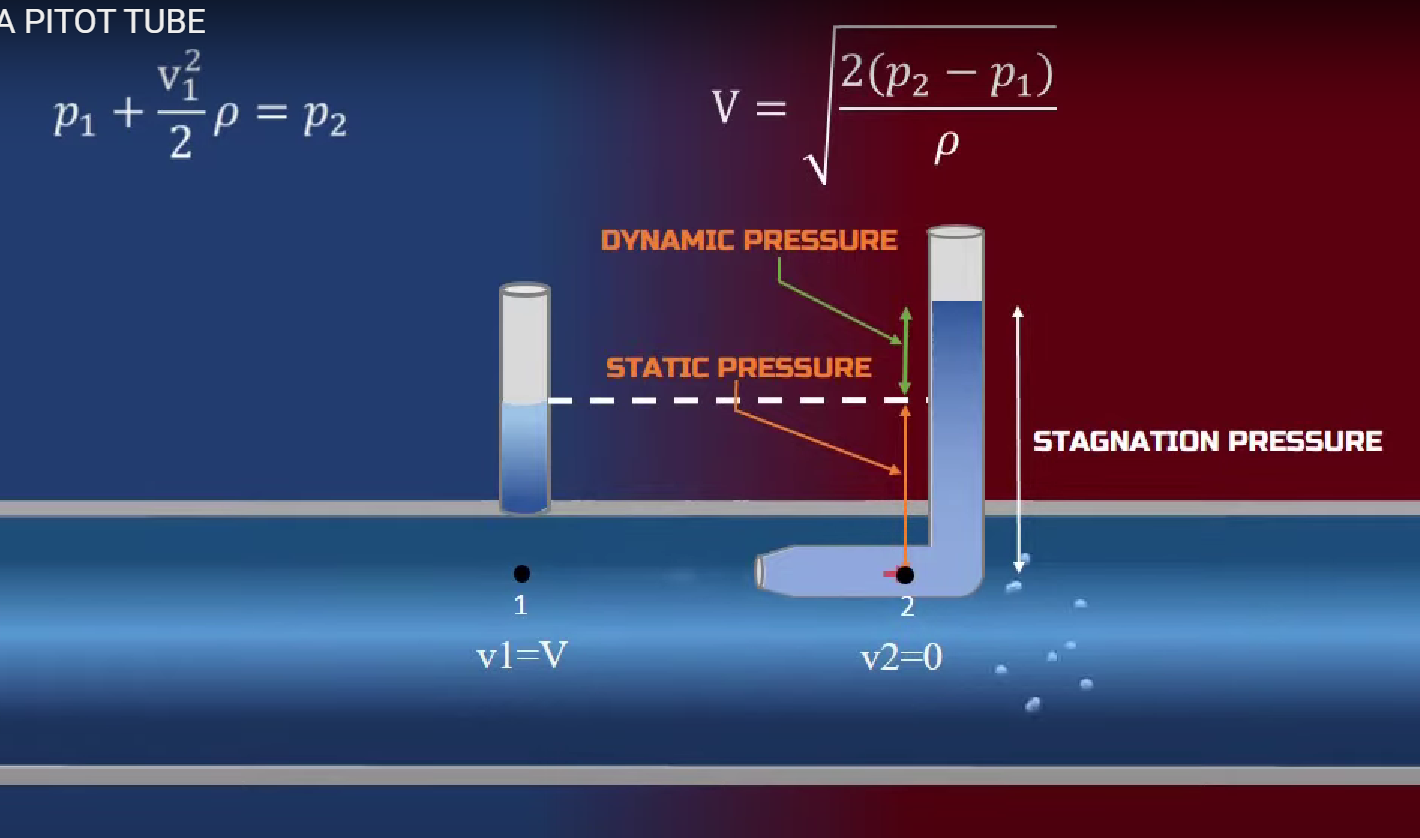

• Youtube

Using the bernoulli equation, if we measure the difference in height:$\frac{1}{2}\rho v_1^2+p_{\text{atm}}+\rho g{h}_1=p_{\text{atm}}+\rho g{h}_2$Or if we measure the difference in preassures:$\frac{1}{2}\rho v_1^2+p_1+\rho g{h}_{\text{static}}=p_2+\rho g{h}_{\text{static}}$ Where:

• $p_1=p_{\text{atm}}$.
• $h_1=h_{\text{static}}$.

So:$v=\sqrt{\frac{2(p_2-p_1)}{\rho }}$

---
