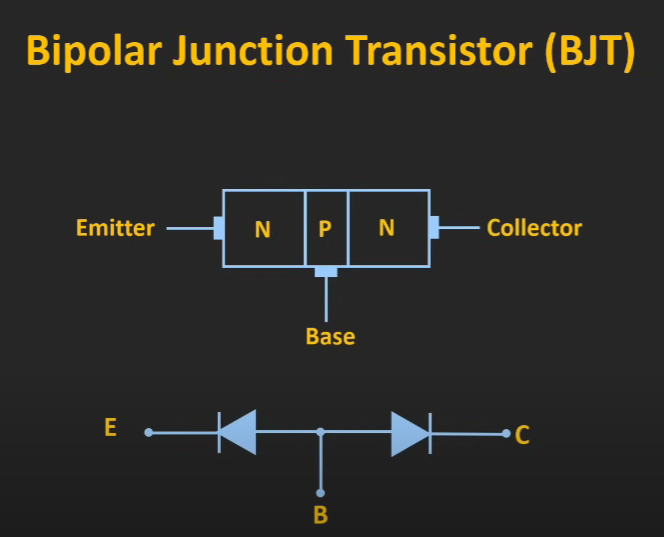

SaM - Fast Recap on BJT • Bipolar Junction Transistor

• Source: Youtube (ElectroBOOM)
• Source: Youtube

---

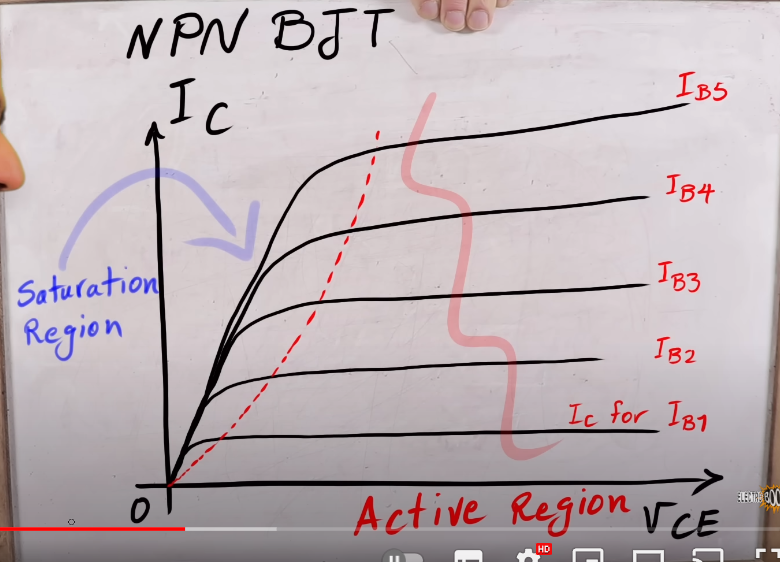

Graph

---

Memory Card

---

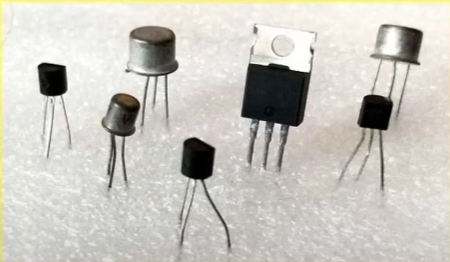

In Real Life Image

---

Simple Scheme

---

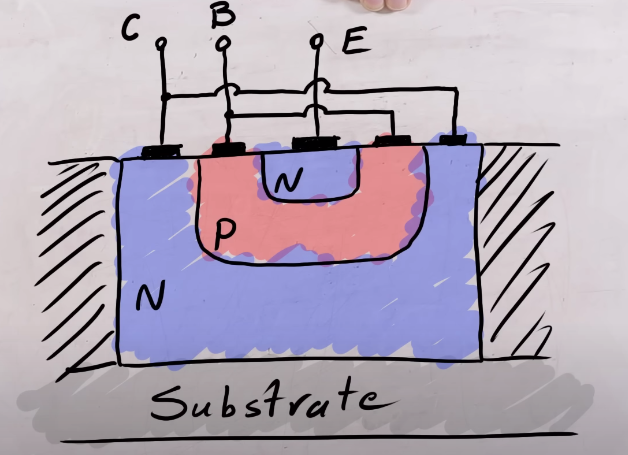

Cross Section

---

Different Regions of Operation

---

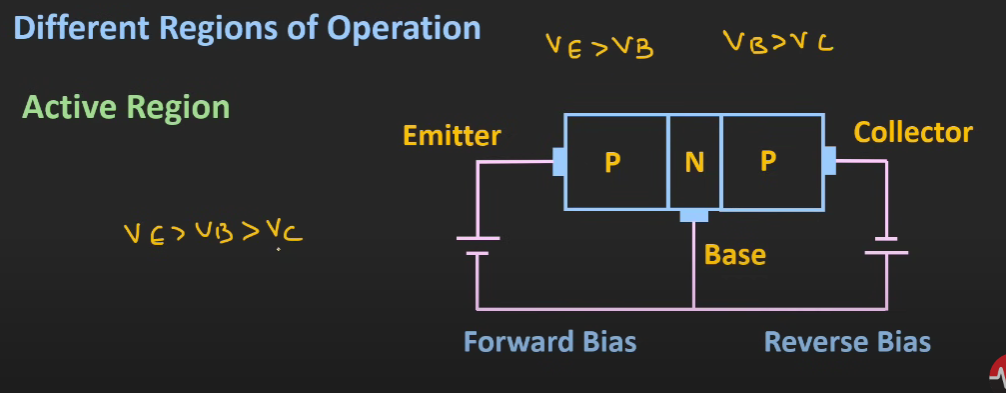

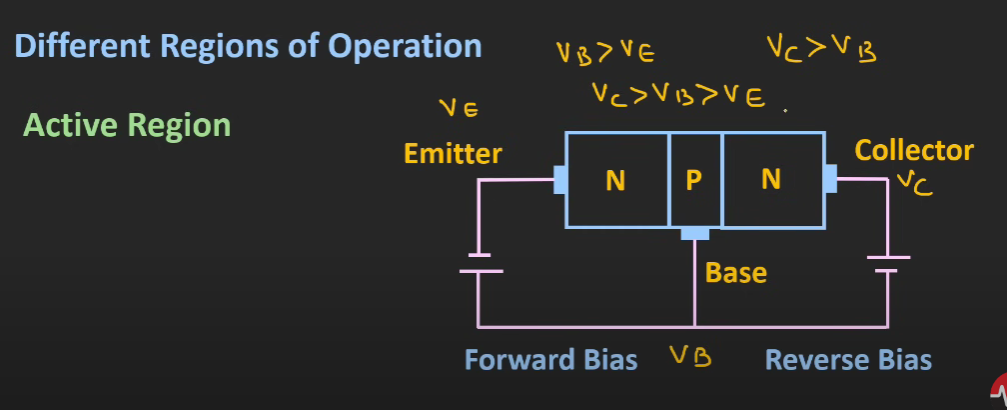

Active Region

• Used for amplificiation

• NPN:


  • $V_C>V_B>V_E$

• PNP:


  • $V_E>V_B>V_C$

---

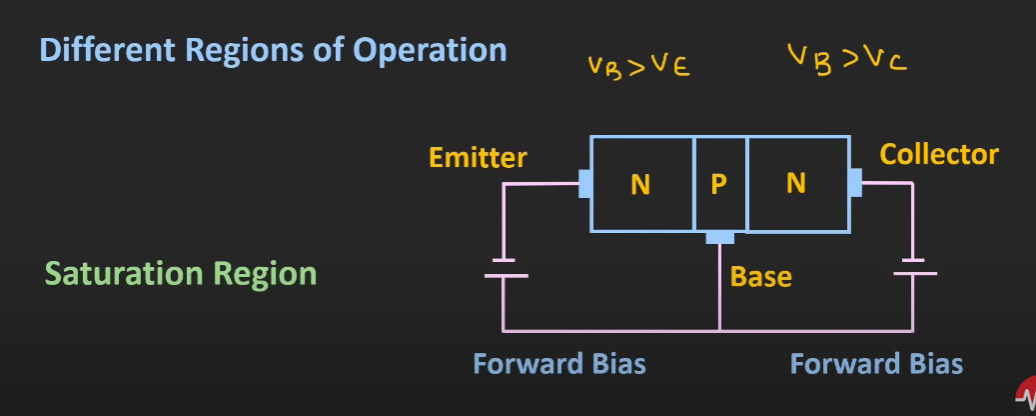

Saturation Region

• Used as a switch, ON: saturation region, OFF: cut-off region
• $V_B>V_E$ & $V_B>V_C$

---

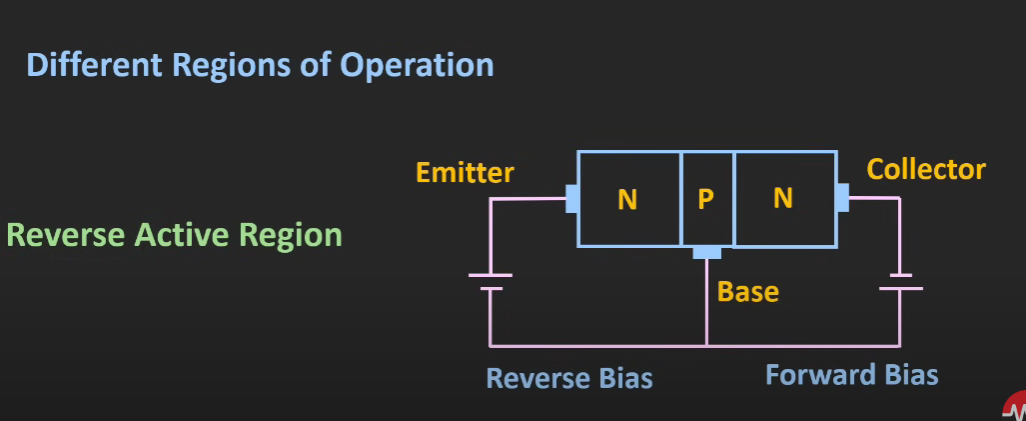

Reverse Active Region

• Emitter is reverse biased.
• The amplification provided by the BjT is much less than in active region.

---

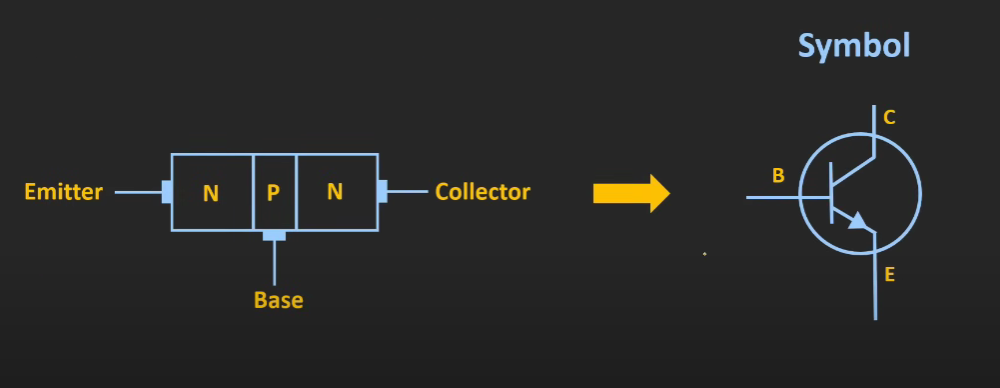

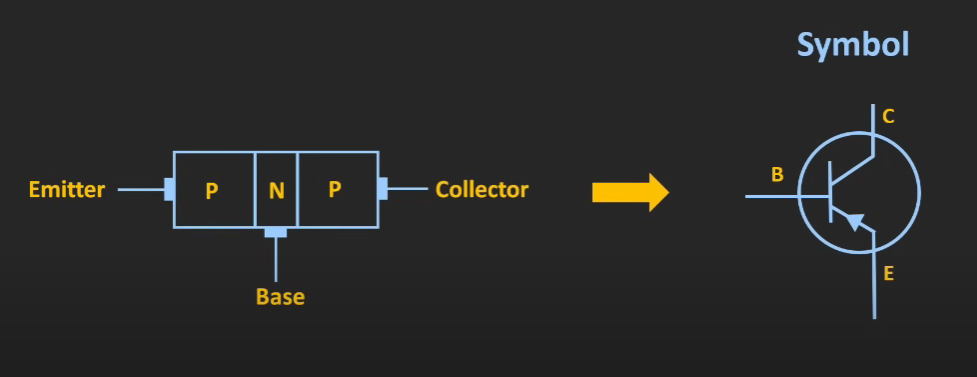

Symbol

• The arrow indicates the direction of the current, when in the active region
• NPN:

• PNP:
