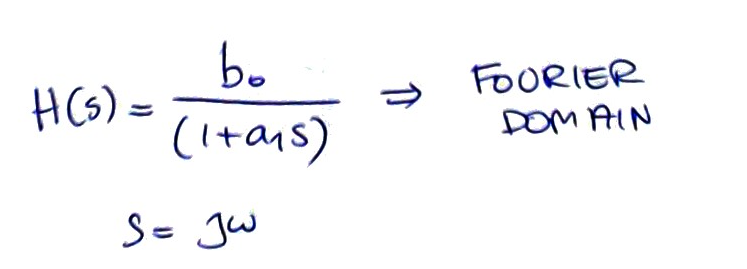

SaM - Bode Plot of a first order ODE

• See also: Bode Plot

---

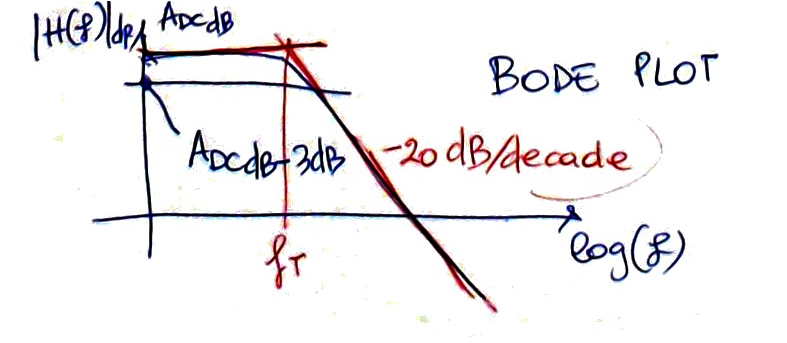

This plot could also be seen as the one of a low-pass filter, or that of the open-loop gain of an amplifier.

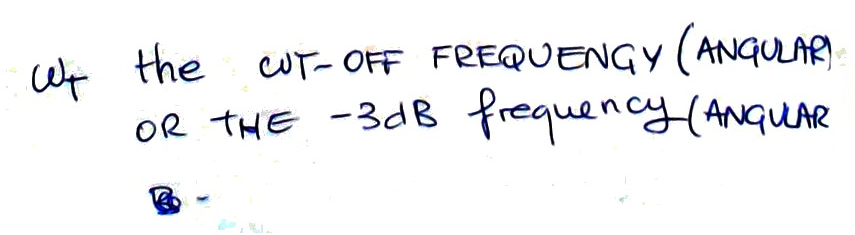

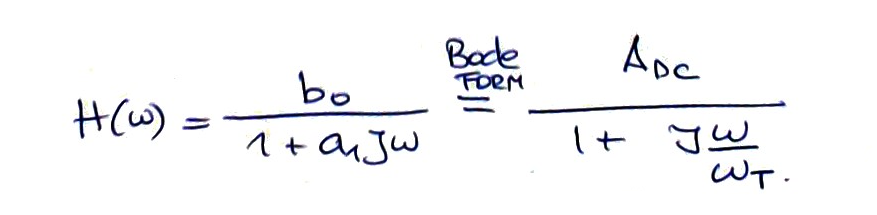

==${\omega }_T$ is the cut-off “angular” frequency, or the $-3dB$ “angular” frequency==:

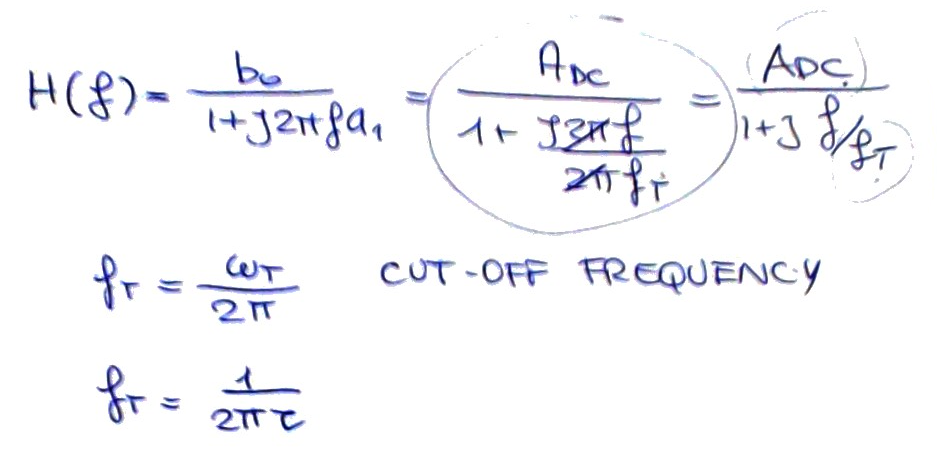

==$f_T$ is the cut-off frequency, or the $-3dB$ frequency==:

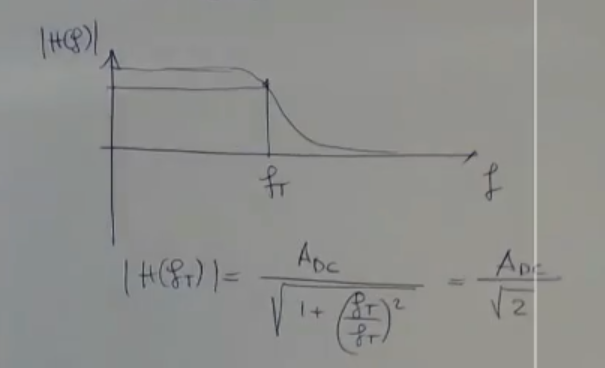

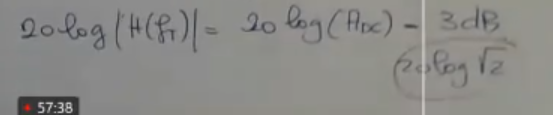

==This is because it’s the 20 log square root of $2$==:

Remember that:

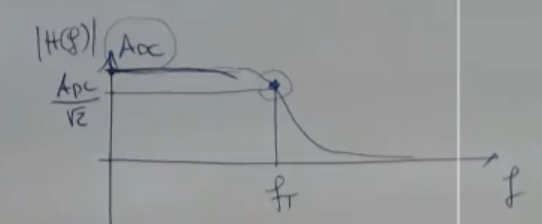

That means that this attenuation is about the 30% of the value that you have in DC.
