SaM - Deformable Structures

Remeber:

• ==Deformable Structures are primary sensor that change a force or preassure in a displacment, or viceversa==.

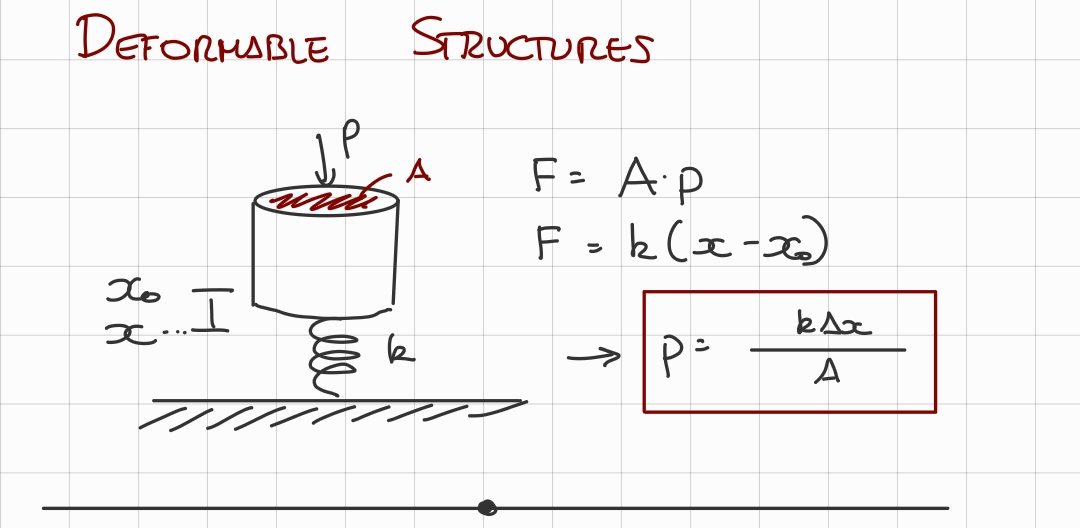

• The usual formula is:$p=\frac{k\cdot \Delta x}{A}$

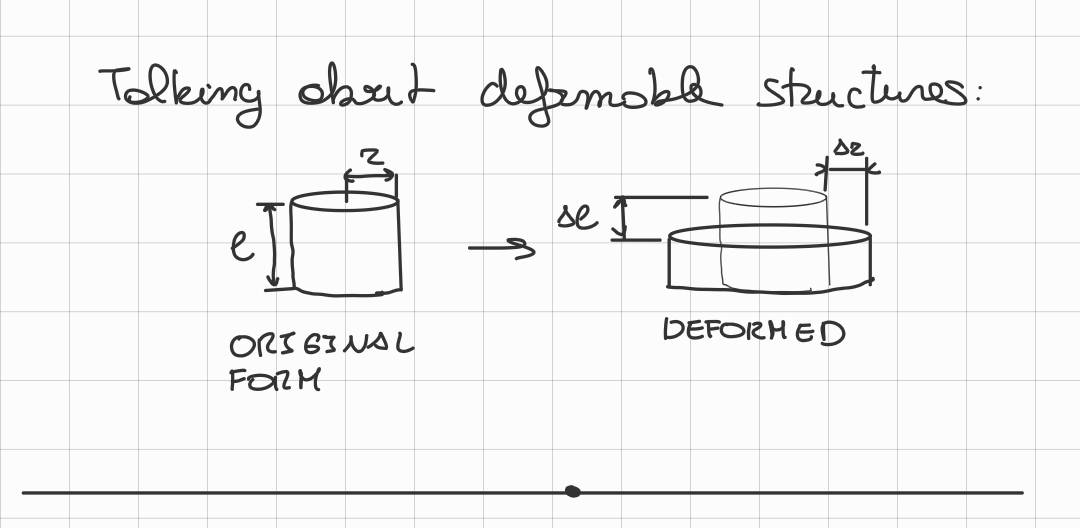

• Here’s an example:


---

Memory Card

---

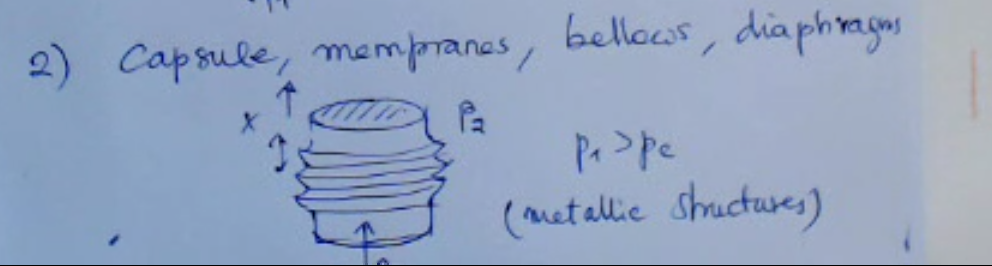

Then we have other times of the formable structure like capsules, membranes, bellows, or diaphragm. And so you have this part here moving when $p_1$ is larger than $p_2$ , you have a positive displacement of this part here, for instance.
And this can be usually a metallic structure.
