SaM - Modes Related to Conjugate Poles

Memory Card

---

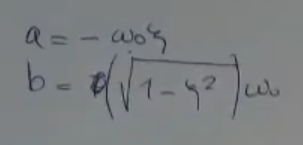

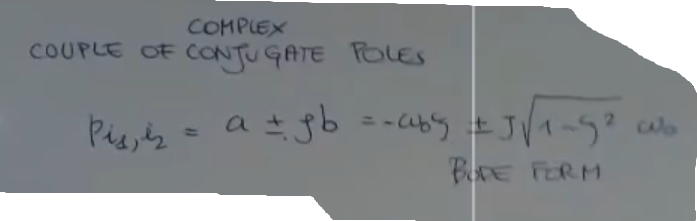

So in this case here you have a couple $p_{i1}$ and $p_{i2}$:

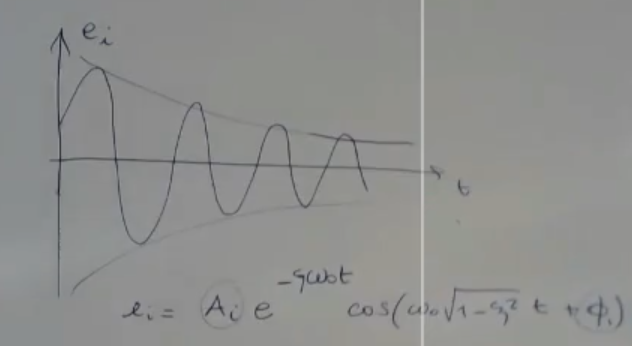

==This kind of poles corresponds to modes of the response of this type here: a damped sine wave==:

speed of decay ${\tau }_i$:

angular frequency ${\omega }_0$:

damping coefficient $\zeta$:

~Ex.:

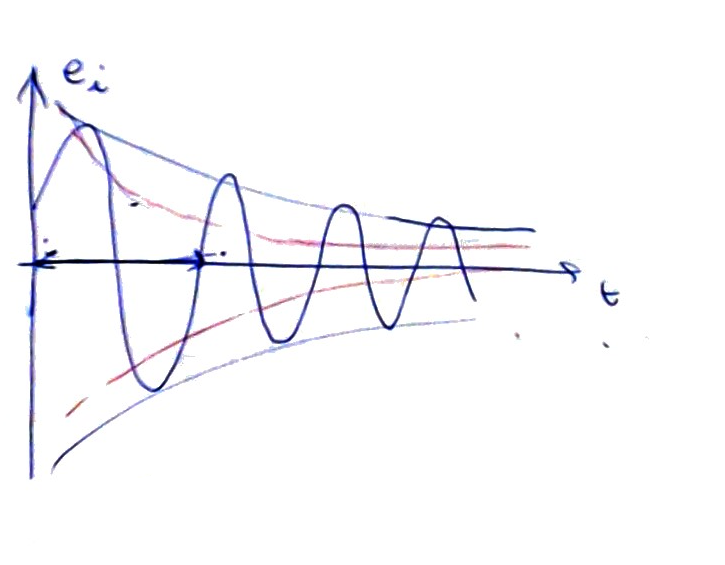

• In blu a curve with a smaller demping coefficient with respect to the red curve, with a higher $\zeta$.
