SaM - Non-Idealities of an Accelerometer

Remeber:

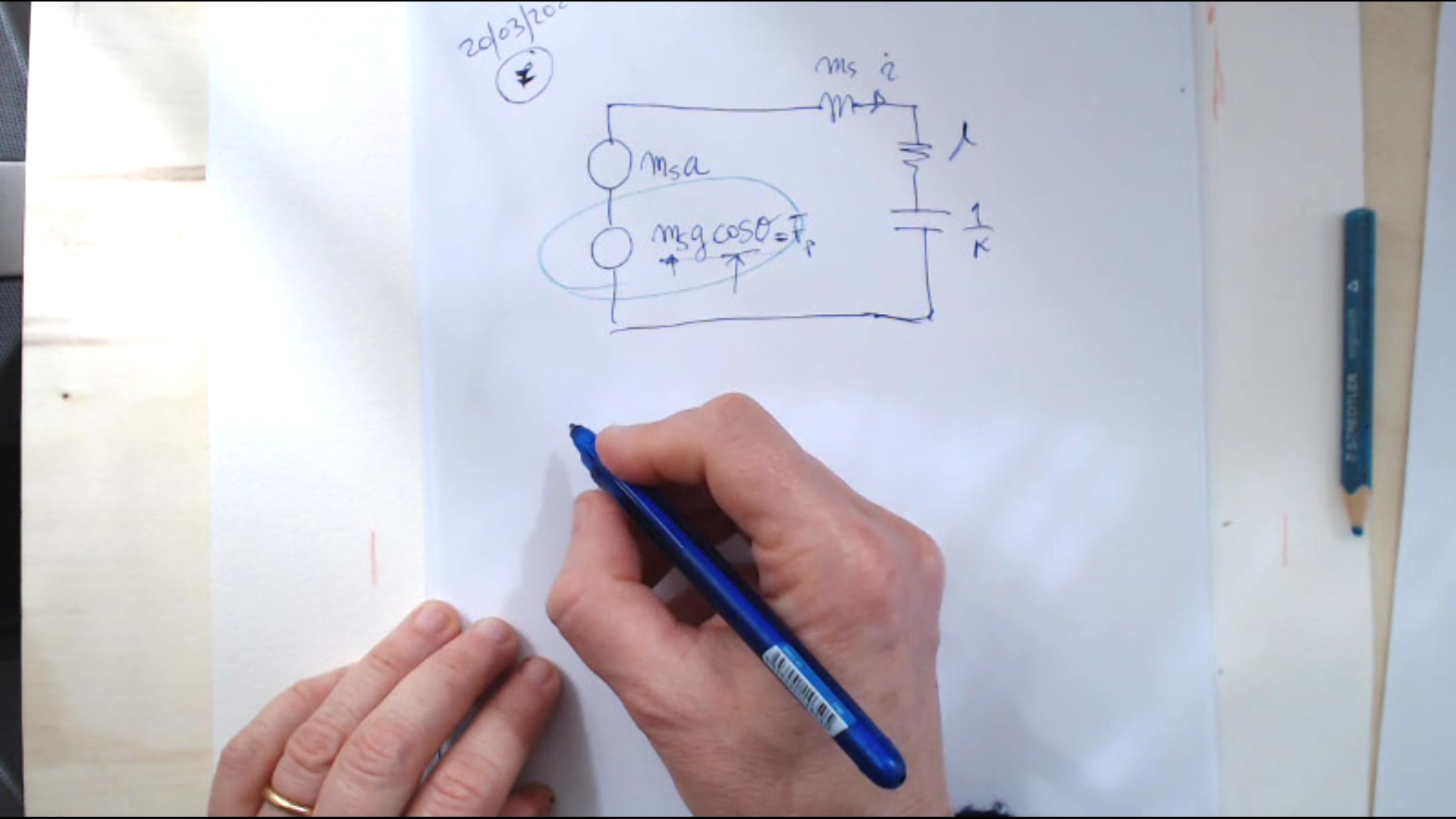

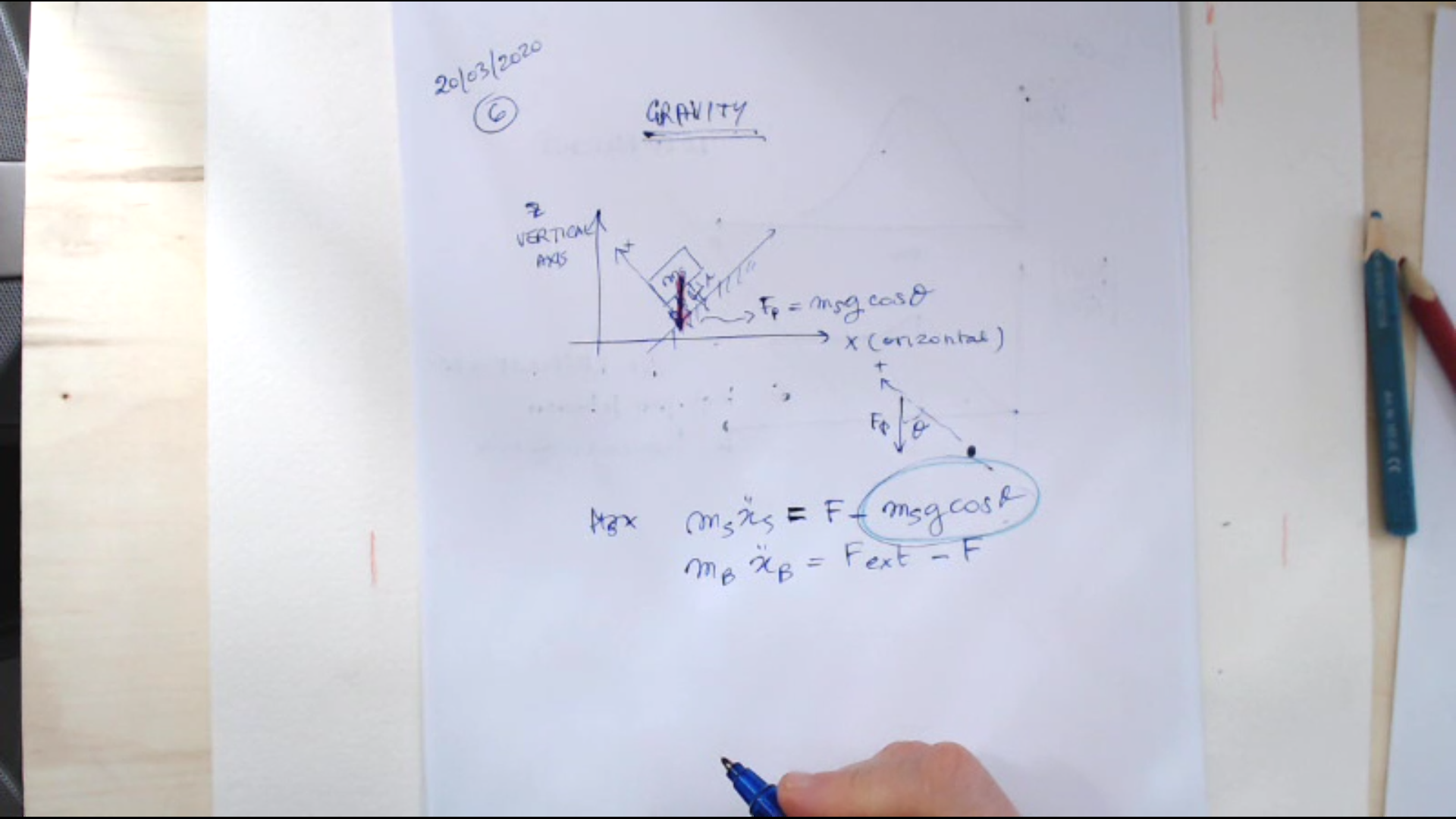

When we described the accelerometer we didn’t account for the effect of gravity. If we wish to account for it:

• If the sensor does not rotate: ==the effect is simply having an offset== (It will measure the external force $F_{\text{ext}}$ plus the gravity $g$).
• Instead, if the sensor rotates during measurements then this $\theta$ here varies and therefore you have a variable error let’s say with respect to what you want to measure which is the effect of gravity of the seismic mass itself, and you see that the larger is this mass $m_s$ and the worst is this effect.

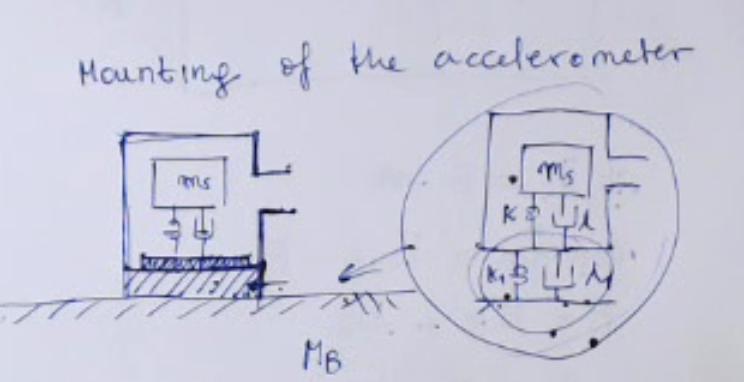

Also if the accelerometer is ==not mounted in a “solid” way==, so if my mount introduces some dumping or acts as a spring, it can be a problem:

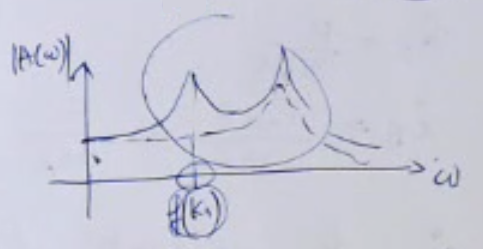

• The transfer function of your device will not be the one that we have studied, but it will be this with some spurious resonance:

• This has to be avoided.

---

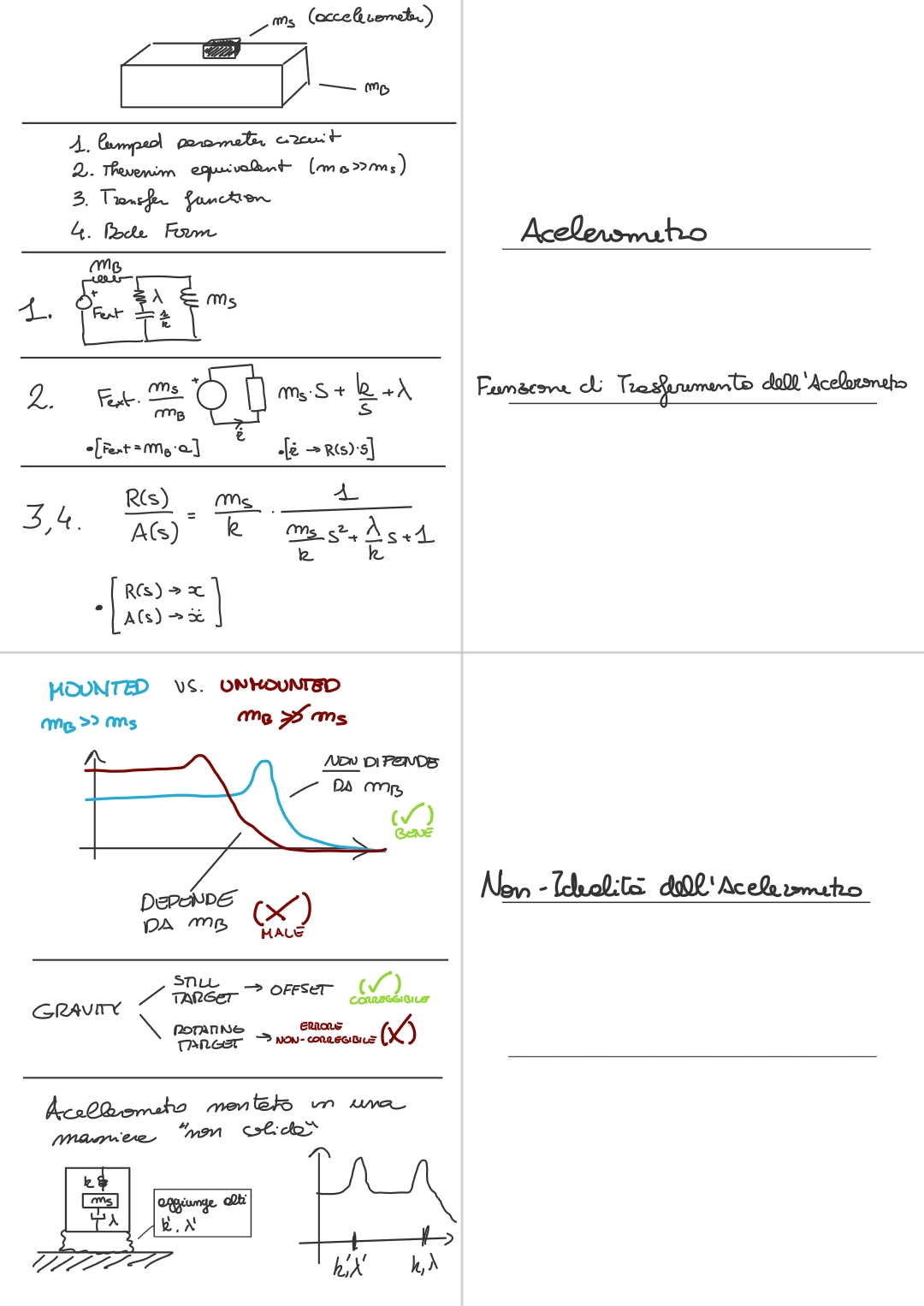

Memory Card

---

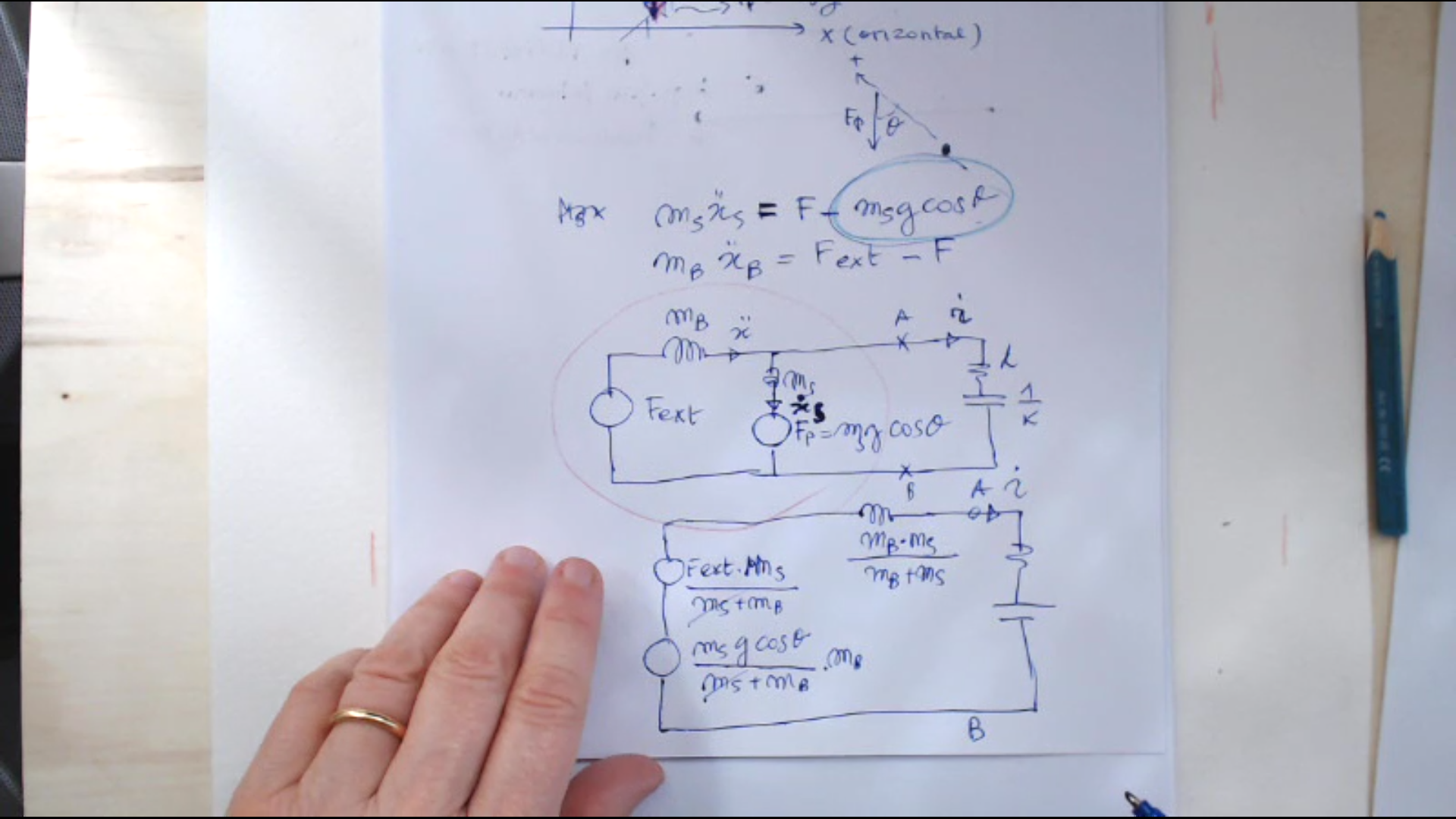

Effect of Gravity on the Accelerometer

• ==So the effect is simply: having an offset==.
• Instead, if the sensor rotates during measurements then this $\theta$ here varies and therefore you have a variable error let’s say with respect to what you want to measure which is the effect of gravity of the seismic mass itself, and you see that the larger is this mass $m_s$ and the worst is this effect.

---

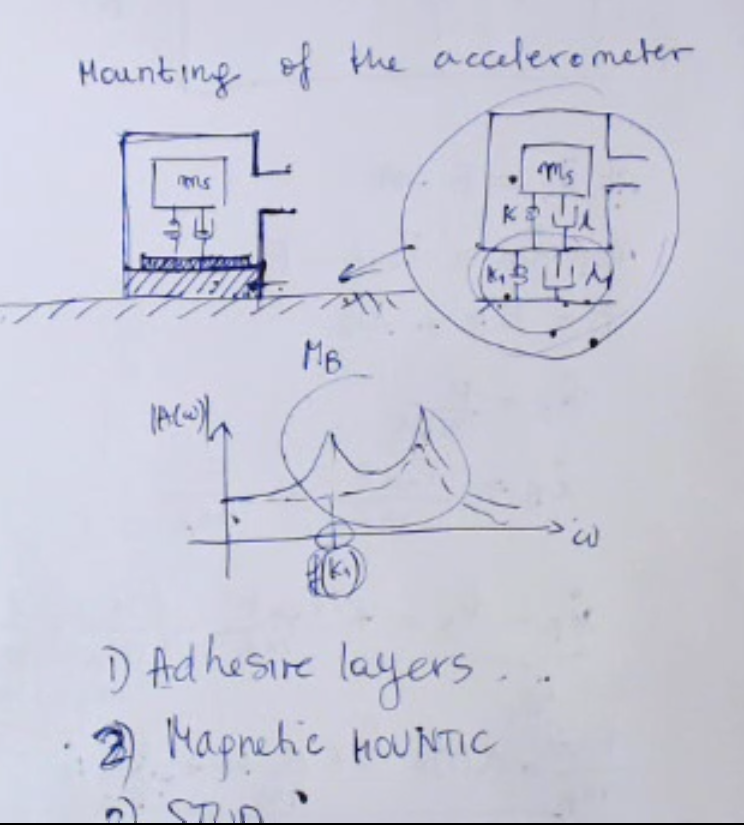

Mounting an Accelerometer

If the accelerometer is not mounted in a “solid” way, so if my mount introduces some dumping or acts as a spring, it can be a problem:

• The transfer function of your device will not be the one that we have studied, but it will be this with some spurious resonance.
• This has to be avoided.
