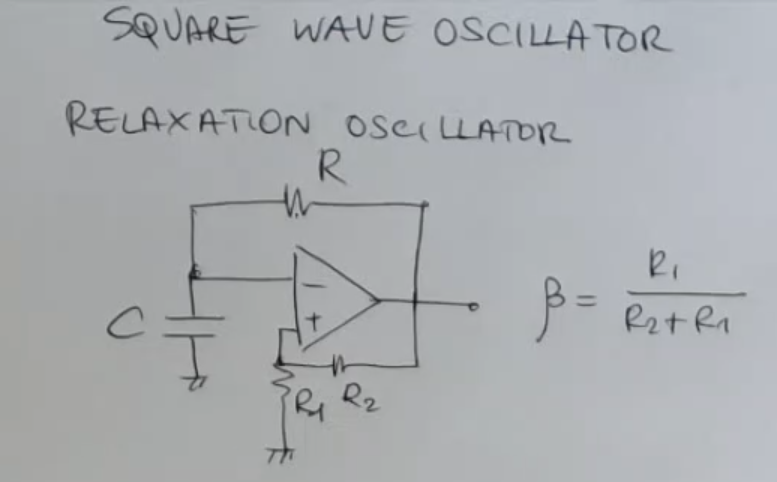

SaM - Square Wave Oscillator

• This is an example of a square wave oscillator.
• ==We will not use it because we go deep into nonlinear behavior==.
• Formula:$T=2RC\cdot \ln \left(\frac{1-\beta }{1+\beta }\right)$

---

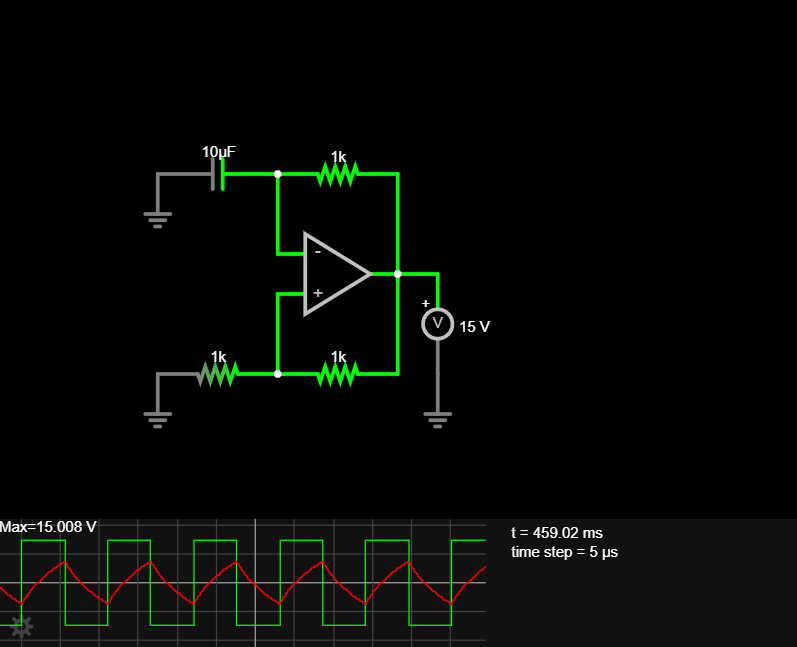

• Circuit


---
