SaM - Current Mirror

• Source: Youtube

---

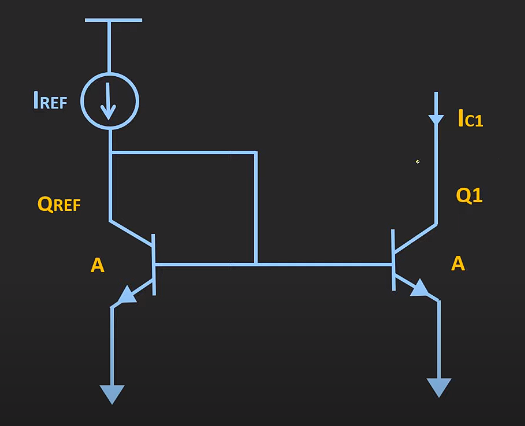

• The formula is:$I_{C1}=I_{\text{REF}}\frac{I_{S1}}{I_{\text{REF}}}$Where $I_S$ is the saturation current.

---

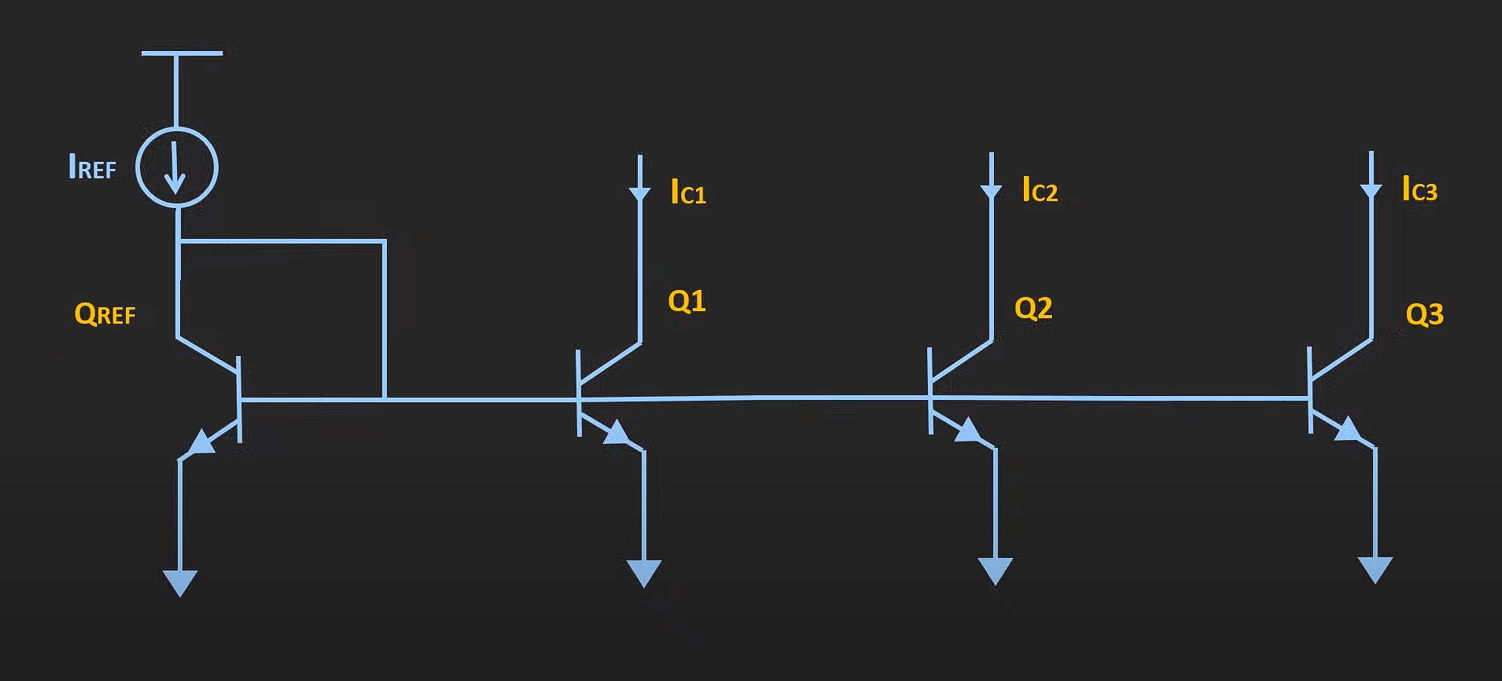

Under the assumptions that: ???TODO The formula is:$I_{C1}=I_{C2}=I_{C3}=I_{\text{REF}}$

---

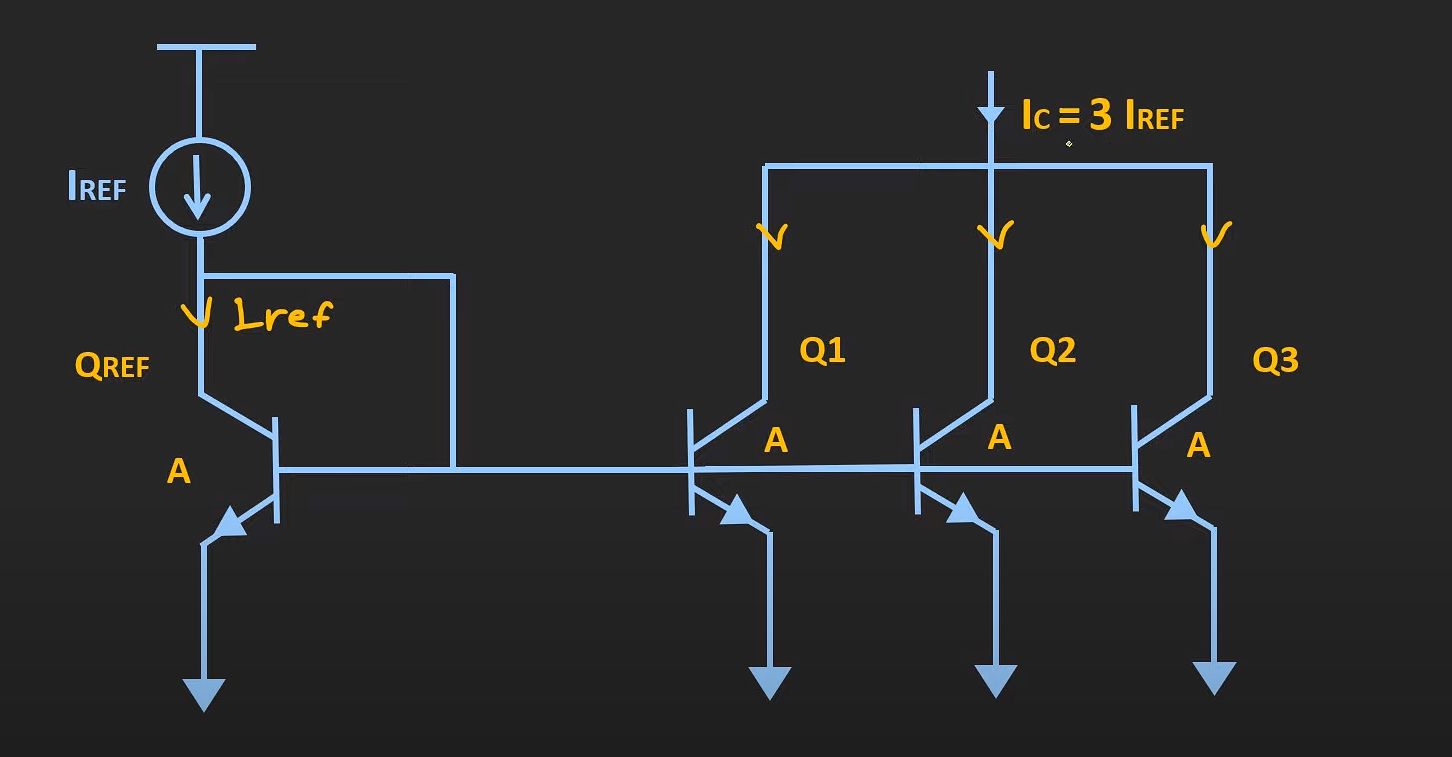

The formula: $I_C=3I_{\text{REF}}$

---

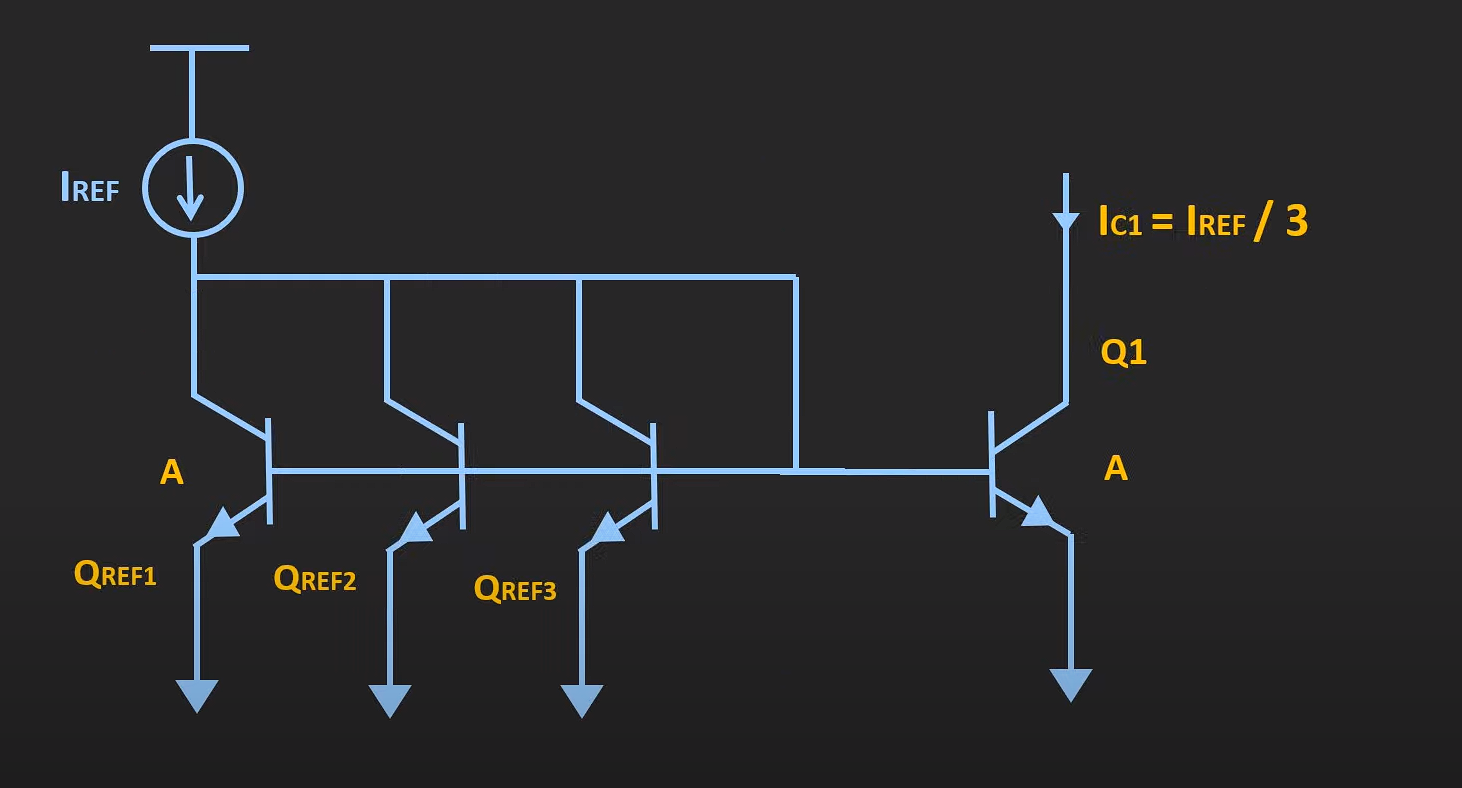

The formula: $I_C=\frac{1}{3}{I}_{\text{REF}}$
