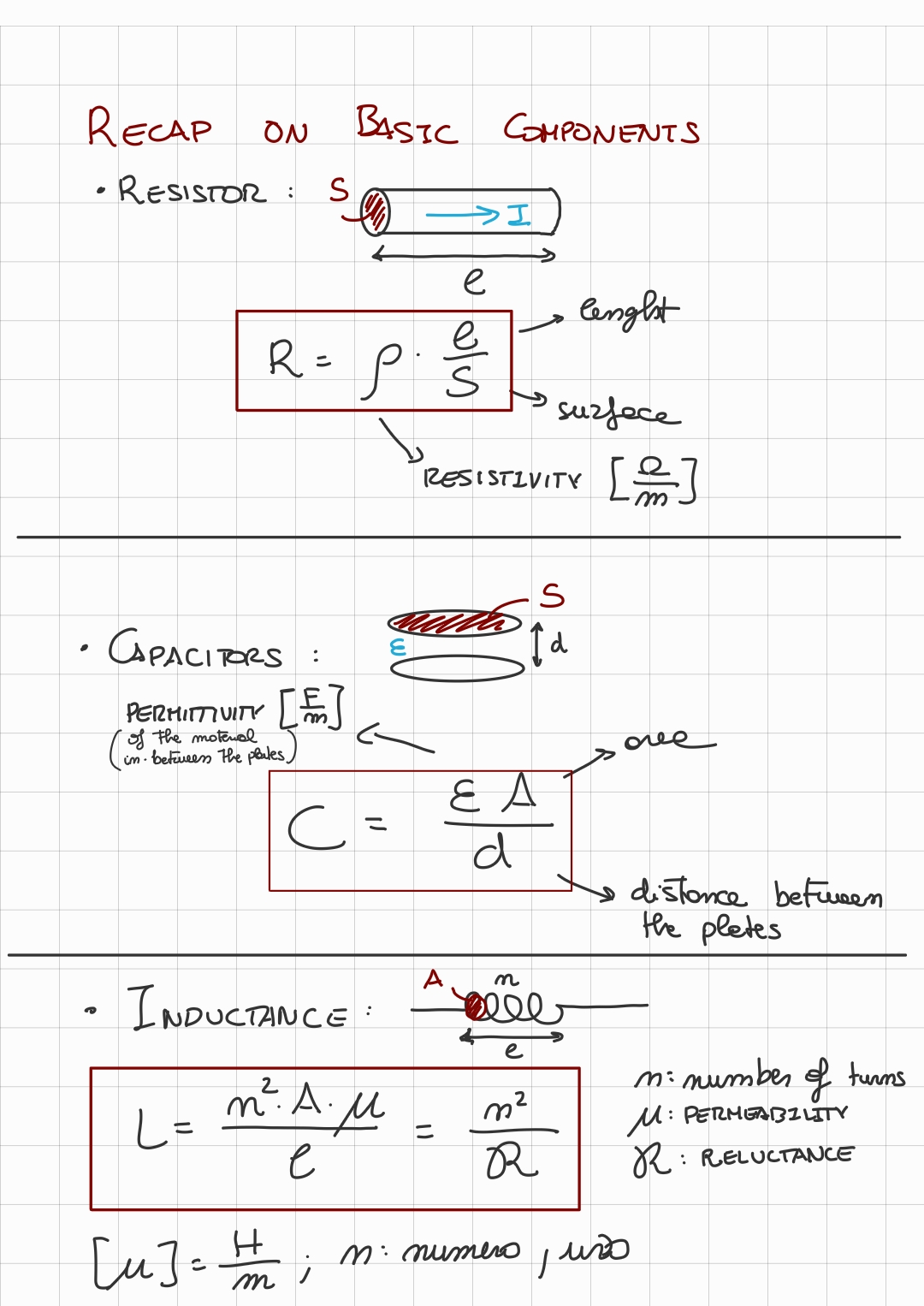

SaM - Recap of Basic Components • Resistance, Capacitance, Inductance • Resistivity, Permittivity, Permeability

Remeber:IMPORTANTE

• Resistance:$R=\rho \frac{l}{S}$
• Condutance: $G=\frac{1}{R}=\sigma \frac{A}{l}$.
  In italiano:
  • $G$ : conduttanza.
  • $\sigma =\frac{1}{\rho }$ : conducibilità.
• Capacitance:$C=\epsilon \frac{A}{d}$
• Inductance:$L=n^2\mu \frac{A}{l}=n^2\frac{1}{\mathcal{R}}$

---

• $n$ : number of turns/coils, is a pure number
