HCR - Transparency

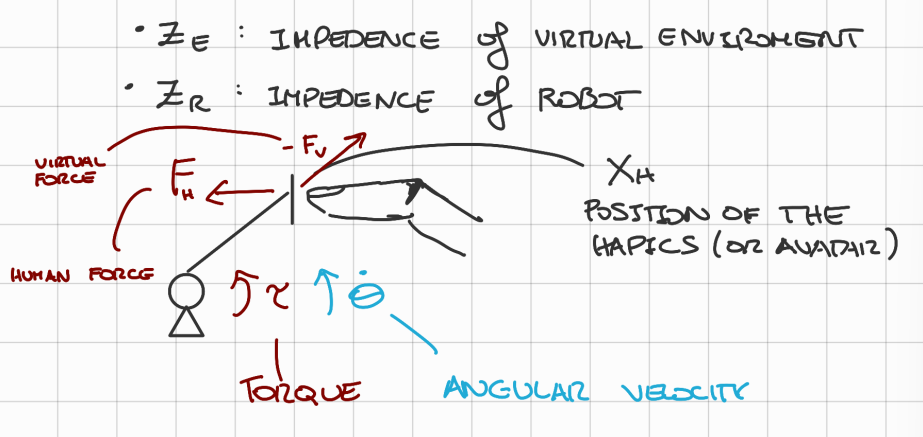

Given:

• $Z_E$: Impedance of virtual environment
• $Z_R$: Impedance of the robot

I want to simulate an $F_v(s)$ so given the $x_h$ we can have:

$$F_v(s)=Z_E(s)\cdot \dot{X}(s)$$

For this particular robot the only way to give a force feedback is to apply a torque so:

$$\tau =J^{-1}\cdot F$$

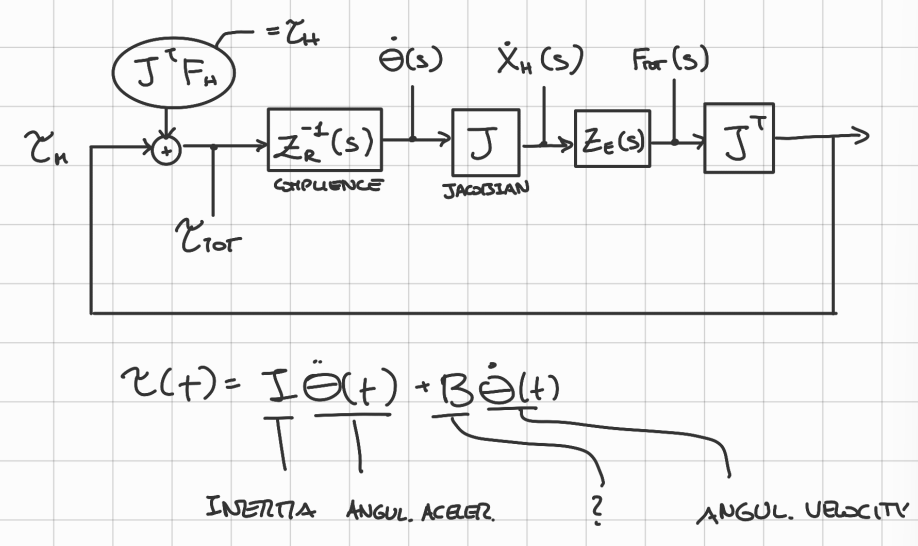

where $J$ is the Jacobian matrix. But there are 2 torques to be summed: the torque of motor ${\tau }_m$ and that of the human ${\tau }_h$:

Then the total torque will be:$\begin{array}{r}\\ \\ \\ Z_R(s):=Is+B\to \\ \end{array}\begin{array}{lc}\tau (s)& =Is\dot{\Theta }(s)+B\dot{\Theta }(s)\\ & |\\ & =(Is+B)\cdot \dot{\Theta }(s)\\ & |\\ & =Z_R(s)\cdot \dot{\Theta }(s)\end{array}$Also remember that:$\begin{array}{l}\tau =J^T\cdot F\\ \dot{X}{}_h(s)=J\cdot dotX\end{array}$Then:$\begin{array}{l}\ddot{x}=J\cdot \ddot{\Theta }\\ \ddot{\Theta }=J^T\cdot \ddot{x}\end{array}$What is really felt by the human is the Force of the human itself $F_h$ and the velocity $\dot{X}(s)$ which is controlled by both ${\tau }_h$ and ${\tau }_m$, then:$$ F = Z_p(s) \cdot \Large \dot{\normalsize X}\normalsize _h \cdot \frac{1}{s}

- $Z_p(s)$ is the [[HCR - Definition of 'Impedance'|Impedance]] **perceived** by the human. ![[Pasted image 20220328165717.png]] And: ![[Pasted image 20220328165734.png]]
