HCR - Lecture 9

HCR - Chain of Joints

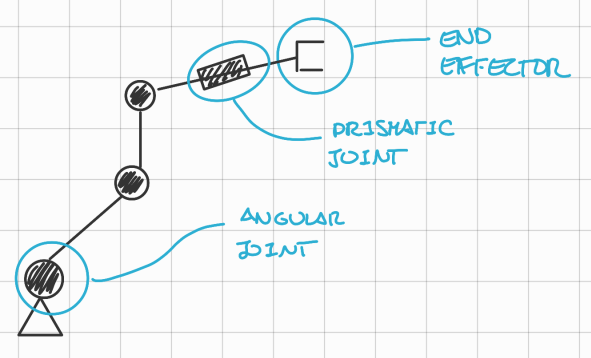

Let’s take a chain of joints:

The generic formula will be:$\left(\begin{array}{l}v\\ w\end{array}\right)=\overline{\stackrel{ˉ}{J}}\cdot \left(\begin{array}{l}{v}_{J1}\\ v_{J2}\\ v_{J3}\end{array}\right)$Where:

• $v$ and $w$ : velocity and angular velocity of the end-effector.
• $\overline{\stackrel{ˉ}{J}}$ : Jacobian matrix
• $v_{Ji}$ : velocity of joint $i$, more specifically:$v_{Ji}=\{\begin{array}{lc}{\dot{\Theta }}_i& \text{if joint i is an angular joint}\\ {\dot{d}}_i& \text{if joint i is a prismatic joint}\end{array}$Where:
  • $d_i$: distance of $i$-esim joint from $(i-1)$-esim joint.

Link to original

---

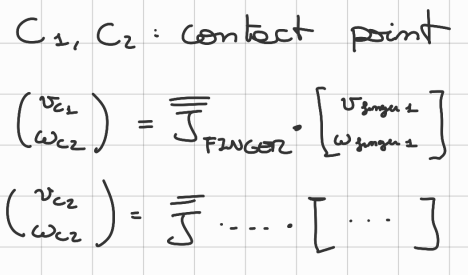

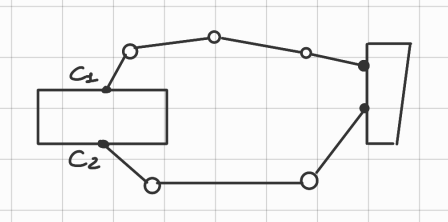

HCR - Chains of Joints that Refers to the Same End-Effector

The selection of the contact velocities depends on the model of the contact that we used.

There are 3 main contact models:

1. Hard finger with friction
2. Hard finger without friction
3. Soft finger

We will use the 1-st one (Hard finger with friction)

To understand the difference between the first and the second model let’s consider us holding a pen and wanting to write on a piece of paper:

• If the paper is normal (it has friction) I can easily write on it (1-st case)
• If the paper is oily (it has no friction) I cannot write on it, I can only impose a vertical force, I slip away when I apply tangential forces (2-nd case)
• In case of Soft fingers we have reduced control on it, instead of having for its wrench 3 forces and 3 moments we only have 3 forces and 1 moment:$W_{\text{soft-finger}}={\left[\begin{array}{l}\overrightarrow{F}{}_{[3\times 1]}\\ {\overrightarrow{M}}_{[1\times 1]}\end{array}\right]}_{[4\times 1]}$

Link to original

---

HCR - Hard Fingers

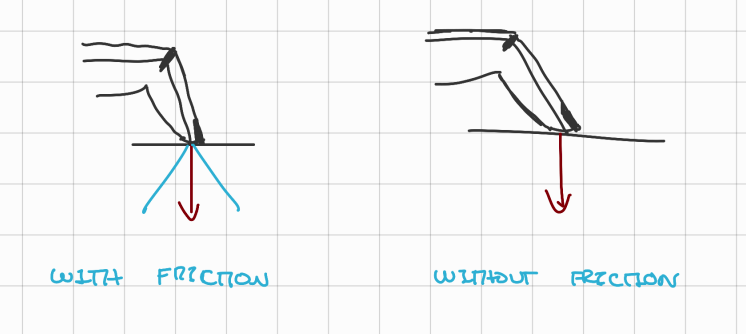

Hard Fingers can be distinguished in 2 classes:

• WITH friction (the friction cone exists)
• WITHOUT friction (without friction when manipulating the surface)

Link to original

---

HCR - Calculating the Hand Jacobian

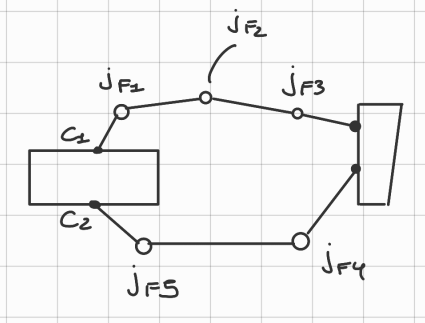

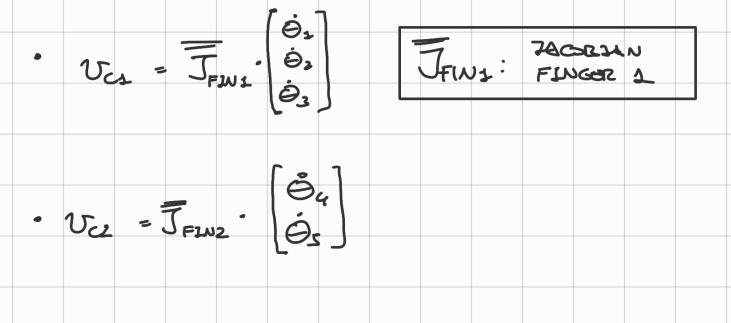

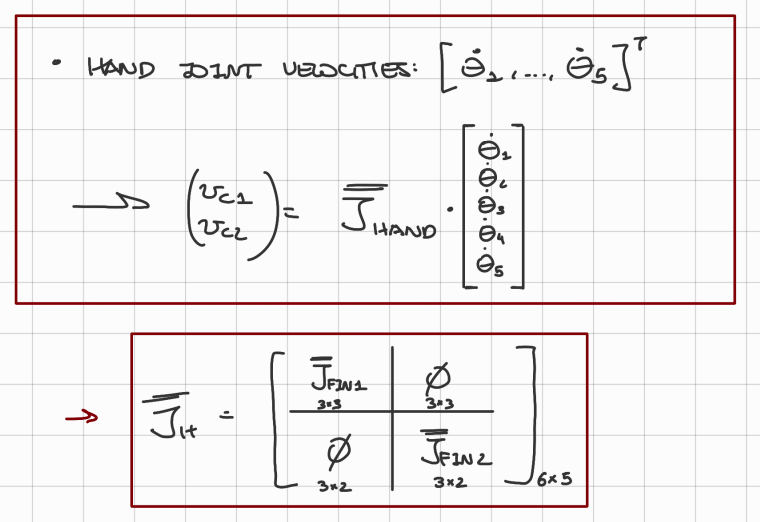

From single kinematic chain Jacobian (or single finger Jacobian) to Hand Jacobian:
Where:

• $j_{F}i$ : joint Finger $i$
• each joint is angular, so it will have an angular velocity ${\dot{\Theta }}_i$

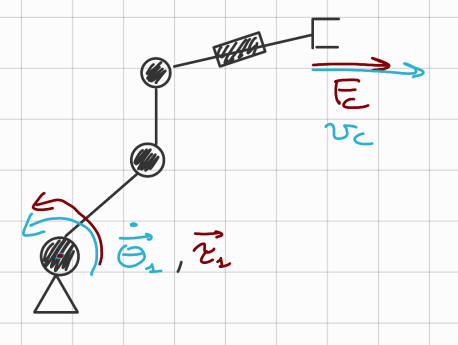

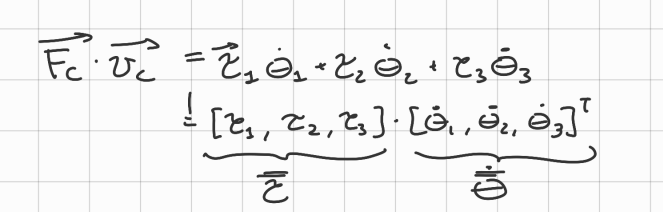

NOTE: The energy at the end-effector is the sum of all the energy expended by the joints. The joints at each point is calculated by the force times the velocity.

Ideally without dissipation of energy we have:

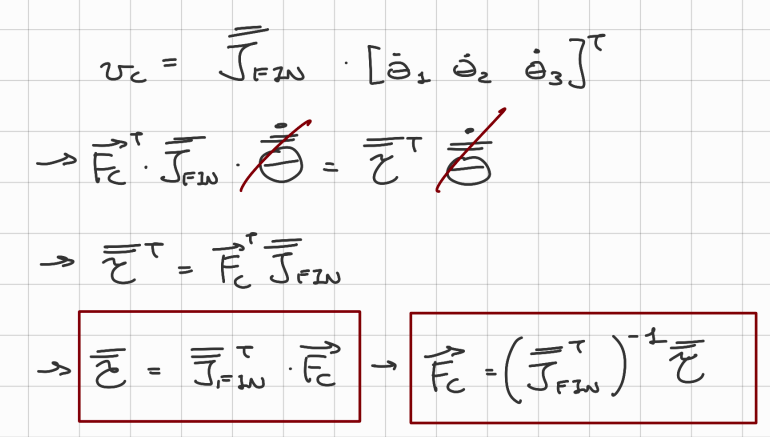

We also know that:

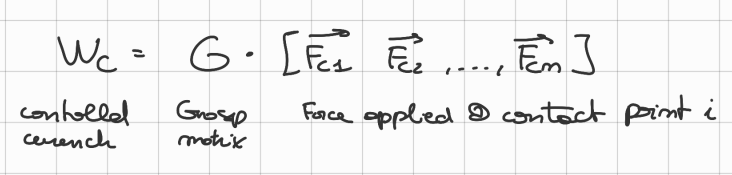

After a rough estimation of the weight and the barycenter of the object, our brain computes the already seen formula: So our brains has to do a few passages before we move the object at hand:

1. First it calculates the trajectory ($W_c$), how I want the object to behave.
2. Then it calculates the Grasp matrix, where are my finger on the object
3. Lastly it evaluates the forces needed to move the object along the previous thought trajectory

Link to original

---

HCR - Solution of a Linear System

A liner system can have:

• 0 solutions
• 1 solutions
• $\infty$ solutions

The forces applied by our brain should belong to the friction cones and if I have only 1 solution for $F_{C1},F_{C2},\dots ,F_{Cn}$ no one guaranties me that one specific solution belongs to the friction cones

• It’s much better to have $\infty$ solutions to respect the friction constraints.

Link to original

---

HCR - Theorem 'At Least One Solutions for a Grasp Matrix'

We have that the grasp matrix $\left(\overline{\stackrel{ˉ}{G}}\right)$:$\overrightarrow{W_c}=\overline{\overline{G}}\cdot \overline{\overline{F_c}}$==Will accepts $1$ or infinite solutions if and only if $\rho (G)=\rho (G⋮W_c)$, otherwise it accepts no solutions==. Where:

• $\rho (G)$: rank of matrix $G$
• $\rho (G⋮W_c)$: rank of matrix $[G⋮W_c]$
• $\rho (G)=\rho (G⋮W_c)$ means that $G$ has to have maximum rank.

Link to original

---

HCR - Lemma 'Infinite Solutions for a Grasp Matrix'

Continuing from this theorem … If $\rho (G)=\rho (G⋮W_c)$ and:

• $N(G)=\{0\}$ → $1$ solution
• $N(G)\ne \{0\}$ → $\infty$ solutions.
  $N(G)$ : null space of $G$

NOTE: $\{0\}$ is always in the null space. $N(G)\ne \{0\}$ means that the null space contains other vectors other than $\{0\}$

Link to original

---

Conclusion

So we desire for a grasp matrix such that:

$$\{\begin{array}{l}\rho (G)=\rho (G⋮W_c)\\ N(G)\ne \{0\}\end{array}$$

→ Then we will have $\infty$ solutions for the forces applied at the contact points ($\overline{\overline{F_c}}=F_{C1},F_{C2},\dots ,F_{Cn}$).

• Among all the solutions we can find one that satisfies the friction constraints.
