HCR - Lecture 8

HCR - Grasping vs Manipulation

• GRASPING: Holding an object (it moves with me but is relatively still)
• MANIPULATION: Hold an object and control its trajectory (specific to the object)

We can see:

• Manipulation → active motion
• Grasping → passive motion

→ To manipulate objects humans have specifically developed the thumb

• Really important when talking about manipulation.

There are 2 kinds of manipulation:

• IN-HAND MANIPULATION
• POWER GRASP

---

Brain prospective

From our brain prospective when we grasp an object (power grasp) it does not cast anything (it doesn’t think about the hand receptors).

• For power grasping we do have control over the object in our hand, but it is not accurate, tho it is fast to process (for our brain).
• For in-hand manipulation, like writing with a pen we use 3 contact point (more generally a small number of contact points) and we need to control each of them very well. (While for power grasping we have many contact point but no need to control them)

Link to original

---

HCR - IN-HAND MANIPULATION

Move the object with respect to the palm. Also called “dexteritious manipulation” ~ Ex.: Writing with a pen

Link to original

---

HCR - POWER GRASP

I don’t care about the specific motion of the object. The object moves with respect to the arm (not the palm) ~ Ex.: Holding air-pods

Link to original

---

HCR - Friction Cone

==A way to visualize friction==

The friction cone depends on the $F_D$ (Force Down-ward) and $\mu$ the friction coefficient.

---

• Friction Cone:


  • Where:$\begin{array}{l}\Theta =\\ \eta :\text{friction coefficent}\end{array}$(The friction coefficent ($\eta$) is specific for each pair of object interaction)
  • A force that want to break the friction is applied as shown:


    • $F_1$ is too small to break friction (the object doesn’t move).
    • $F_2$ is big enough (the object begins to move).
    • Graphically $F_1$ is inside the friction cone.
      While $F_2$ is outside the friction cone
  • Knowing where the friction cone is, and how big it is, is extremely crucial, because if i want to apply force to the object without it slipping out (break friction) i need to apply all the forces such that they stay inside the friction cones.

---

• ~Ex.: Position of the friction cones
  • Suppose we have this object:

  • Let’s see how the position of the friction cones is useful.
    I apply to the previous object 3 forces: $F_1,F_2,F_3$, resulting in this 3 friction cones:

  • Take now an opposite force $F$ that tries to break friction.
    It is clear that where i apply the previous 3 forces changes the intensity of the Force $F$ needed to break friction:


Link to original

---

HCR - Representation of Forces on the Reference Frame

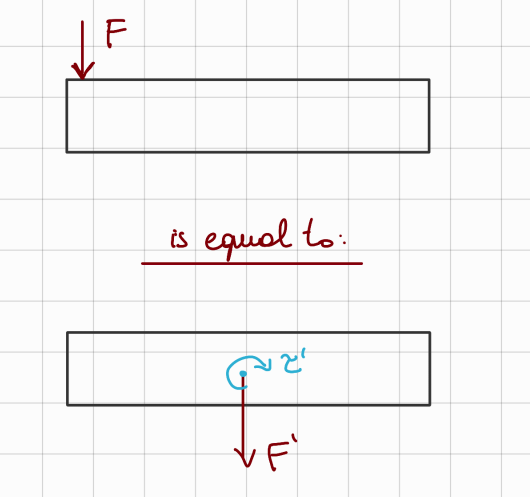

Every force on an object can be represented in the object RF (Reference Frame) usually defined as its barycenter by another Force plus a Torque.

Also every interaction the object has with the world can be summarized by an external Force and an external Moment (or Torque)

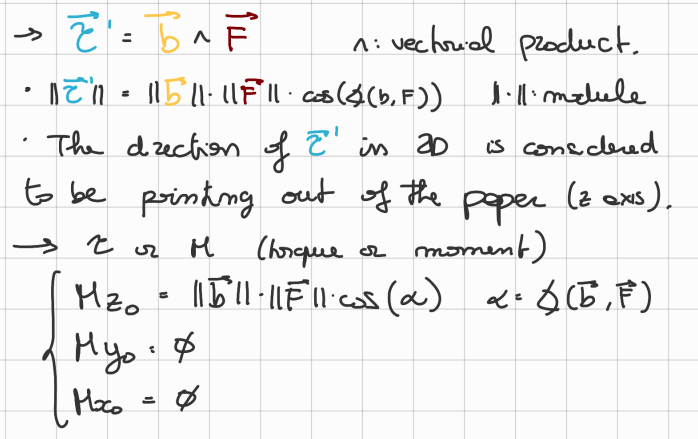

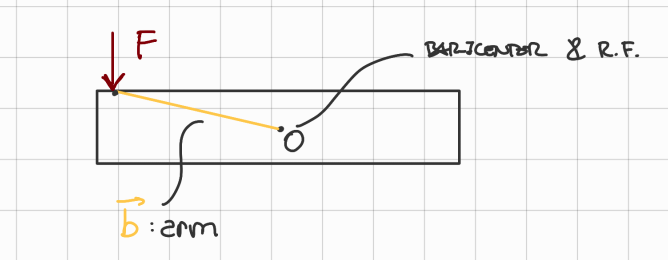

• To compute the Torque ${\tau }^{\prime }$

in the RF (reference frame) $0$ →

$${\left(\begin{array}{l}{M}_{x_0}\\ M_{y_0}\\ M_{z_0}\end{array}\right)}_0={\overrightarrow{b}}_0\wedge {\overrightarrow{F}}_0$$

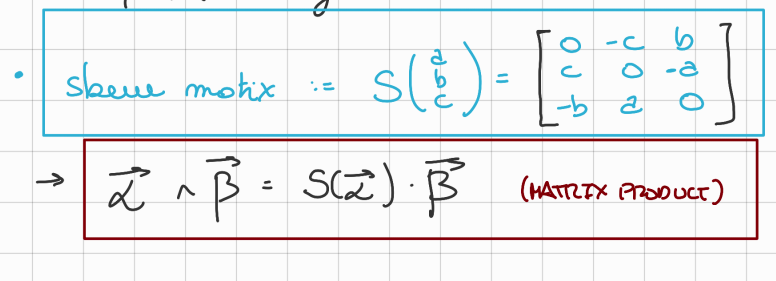

• The vector product can be computed using the Skew Matrix:

Link to original

---

HCR - Definition of 'Wrench'

Formula:$W:={\left[\begin{array}{l}F\\ M\end{array}\right]}_{6\times 1}$Where:

• $F$ : Force vector $[3\times 1]$
• $M$ : Moment vector $[3\times 1]$

Link to original

---

HCR - Definition of 'External Wrench'

The external wrench $W_e$ is so defined:$$ W_{\kern-3px e} := \left[ \begin{array}{l} F_e \ M_e \end{array} \right]_{6 \times 1}

- $F_e$ : Sum of all external Forces - $M_e$ : Sum of all external Moments So if we have an external wrench we can define the system as **In Equilibrium** (or grasping equilibrium) if we apply to it a *Controlled Wrench* $W_{\kern-3px c}$ , such that:

W_{\kern-3px c} = - W_{\kern-3px e}

- $W_{\kern-3px c}$ can be imposed by a human hand (IRL), a robotic hand (Industry) or a virtual hand (VR). - $W_{\kern-3px c}$ the controlled wrench (3 forces and 3 moments) represents the overall effect in term of forces and moments on the barycenter of the object, given by all the **contact forces** applied by the human/robotic/virtual hand at the contacts established with the object.Link to original

---

HCR - Grasp Matrix

Grasp Matrix

• For each contact point we have a wrench $\overrightarrow{W_i}$ of dimensions $[6\times 1]$
• We define the Grasp Matrix $\overline{\overline{G}}$ as:$\overrightarrow{W_i}=\overline{\overline{G}}\cdot {\left[\overrightarrow{F_1},\overrightarrow{F_2},\dots ,\overrightarrow{F_n},\right]}_{3n\times 1}^T$Where:
  • $W_c$ has dimensions: $[6\times 1]$
  • ${\left[\overrightarrow{F_1},\overrightarrow{F_2},\dots ,\overrightarrow{F_n},\right]}^T$ has dimensions: $[3n\times 1]$
  • So $\overline{\overline{G}}$ has dimensions: $[6\times 3n]$

Instead of using the Moment of each contact point, we use the arm $\overrightarrow{b}$ to calculate it using the grasp matrix: Where:

• $\overline{\overline{I}}$ : Identity matrix $[3\times 3]$
• $\overline{\overline{S(b)}}$ : Skew matrix $[3\times 3]$
• $\overrightarrow{b}$ : arm (distance of the contact point $C_i$ from the RF $O$ : $\overline{O{C}_i}$) $[3\times 1]$

NOTE: The Grasp Matrix depend on the reference frame, so we can write:${}^0\overline{\overline{G}}\text{or}{\overline{\overline{G}}}_0$Meaning the Grasp matrix is associated to the $0$-th reference frame

Link to original

---

HCR - Change of the Normal during Grasping

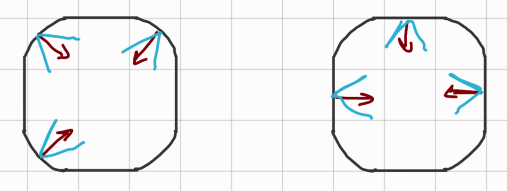

Suppose we posses an object and we want to find the best possible grasp between this two configurations:

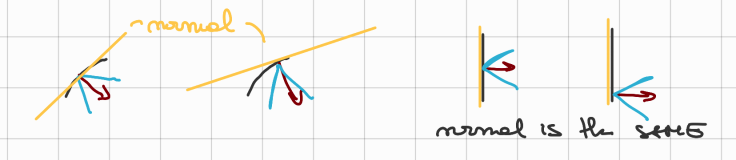

We look at the normal of the surface at the contact points:

• Notice how if the contact points in the first case change a little the normal changes a lot.
• While in the second case if we change the contact points a little (or we perturbate them) the normal does not change at all:

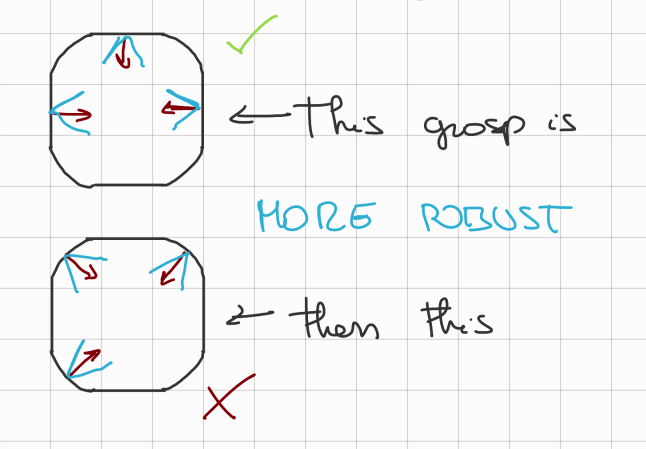

So we can say:

Link to original
