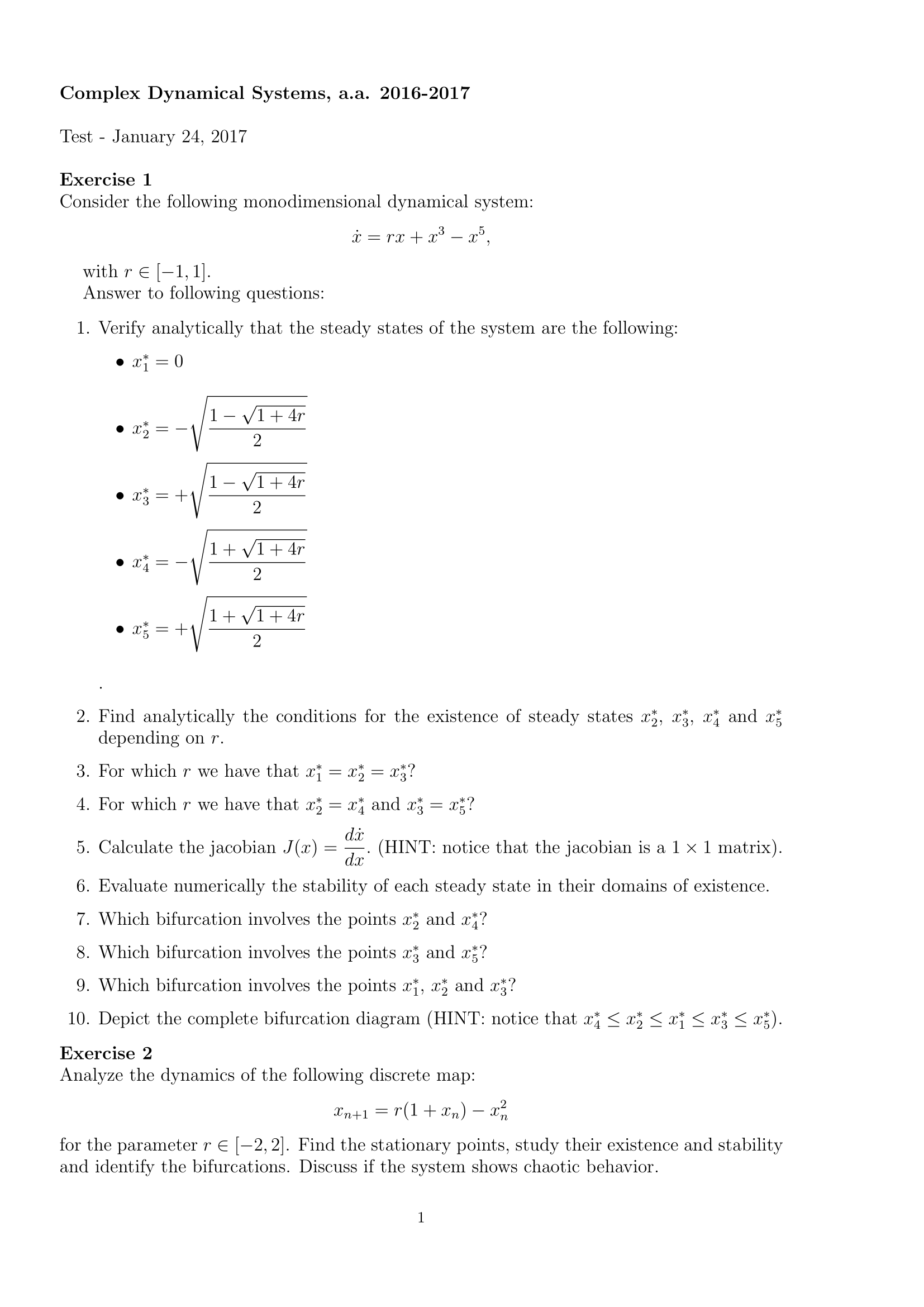

CDS exam 2017 01 24

CDS exam 2017 01 24

Oct 01, 20241 min read

Contents: #ComplexDynamicSystems #DynamicalSystemWithParameters #SteadyStates #JacobianMatrix #EvaluateTheStability #Bifurcations #BifurcationDiagram #DiscreteMap #ChaoticSystem
