UKF Algorithm

Explanation of the Algorithm

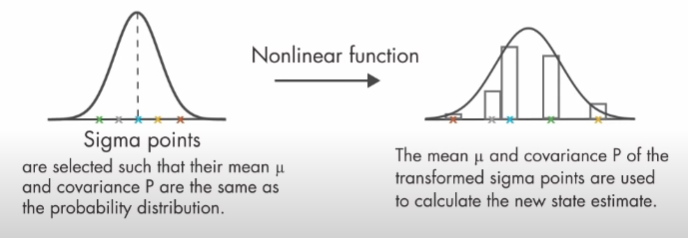

1. Find the sigma points

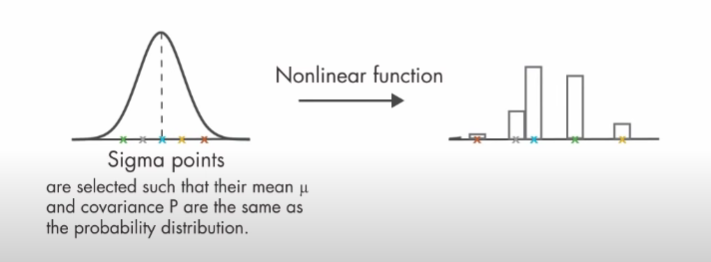

2. Calculate the approximate Gaussian distribution of the state estimate using the non-linear function of the system and the sigma points, this approximation will replace the $P(t|t)$ covariance matrix.
3. The newly calculated Gaussian pdf is then used to calculate the new estimate at $t+1$.
4. The estimate at $t+1$ is corrected using the measurements at $t+1$.

---

Algorithm

0. Initialization:

1. Calculate the mean $m$ and covariance matrix $P$

$$\begin{array}{rl}& m=\sum _{i=1}^p{W}^{(i)}{X}^{(i)}\\ & P=\sum _{i=1}^p{W}^{(i)}\cdot \left(X^{(i)}-m\right){\left(X^{(i)}-m\right)}^T\end{array}$$

2. Calculate the sigma points $X^{(i)}$:

$$\begin{array}{rl}& p=2n\\ & X^{(i)}=\{\begin{array}{ll}m+{\left(\sqrt{n\cdot P}\right)}_i& i=1,\dots ,n\\ m-{\left(\sqrt{n\cdot P}\right)}_{i-n}& i=n+1,\dots ,2n\end{array}\\ & W^{(i)}=\frac{1}{2n}i=1,\dots ,2n\end{array}$$

3. Transform the sigma points using the non-linear state-update function $f$:

$${\hat{X}}^{(i)}=f(X^{(i)},u(t),{\Omega }^{(i)})$$

Where:

• ${\Omega }^{(i)}$ are the sigma point of $w(t)$.

4. Approximate the pdf of the ${\hat{X}}^{(i)}$ points:

$$\begin{array}{rl}& m_x=\sum _{i=1}^p{W}^{(i)}{\hat{X}}^{(i)}\\ & P_x=\sum _{i=1}^p{W}^{(i)}\cdot \left({\hat{X}}^{(i)}-m_x\right){\left({\hat{X}}^{(i)}-m_x\right)}^T\end{array}$$

5. Transform the sigma points using the non-linear measurement function $h$:

$${\hat{Z}}^{(i)}=h(X^{(i)})+V^{(i)}$$

Where:

• $V^{(i)}$ are the sigma point of $v(t)$.

6. Approximate the pdf of the ${\hat{Z}}^{(i)}$ points:

$$\begin{array}{rl}& m_z=\sum _{i=1}^p{W}^{(i)}{\hat{Z}}^{(i)}\\ & P_z=\sum _{i=1}^p{W}^{(i)}\cdot \left({\hat{Z}}^{(i)}-{\hat{m}}_z\right){\left({\hat{Z}}^{(i)}-{\hat{m}}_z\right)}^T\\ & P_{xy}=\sum _{i=1}^p{W}^{(i)}\cdot \left({\hat{X}}^{(i)}-{\hat{m}}_x\right){\left({\hat{Z}}^{(i)}-{\hat{m}}_z\right)}^T\\ & m_x=m_x+P_{xy}{P}_y^{-1}\left(z(t+1)-{\hat{m}}_z\right)\\ & P_x=P_x-P_{xy}{P}_y^{-1}{P}_{xy}^T\\ & \to {\mathrm{pdf}}_x=N(m_x,P_x)\end{array}$$

Where:

• $z(t+1)$ measured data.

7. Iterate repeating form point (2.)

---
