SI&DA - Transformation of an SP
SI&DA - Transformation of an SP
Jul 31, 2024
1 min read

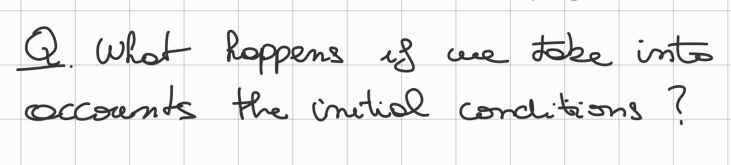

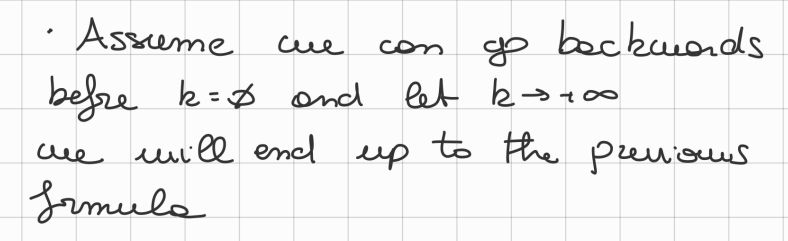

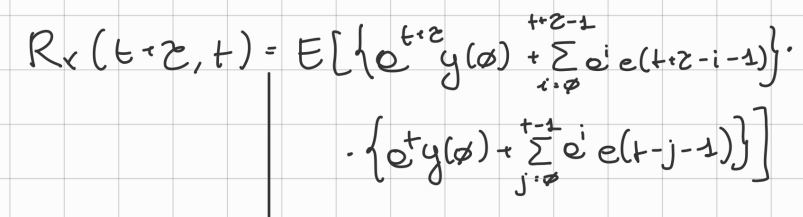

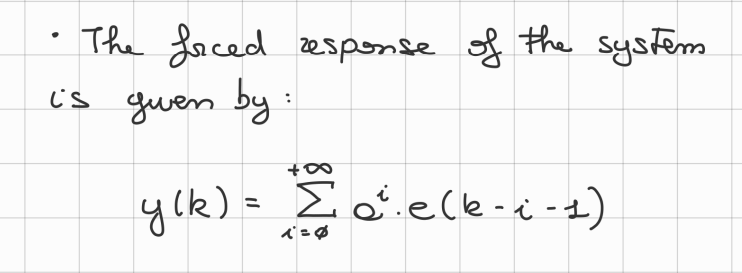

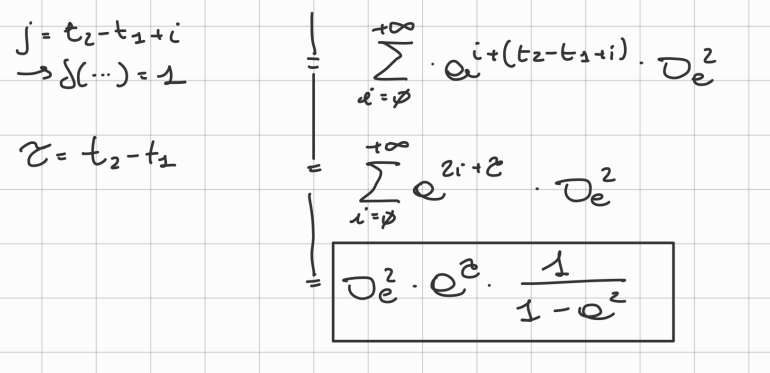

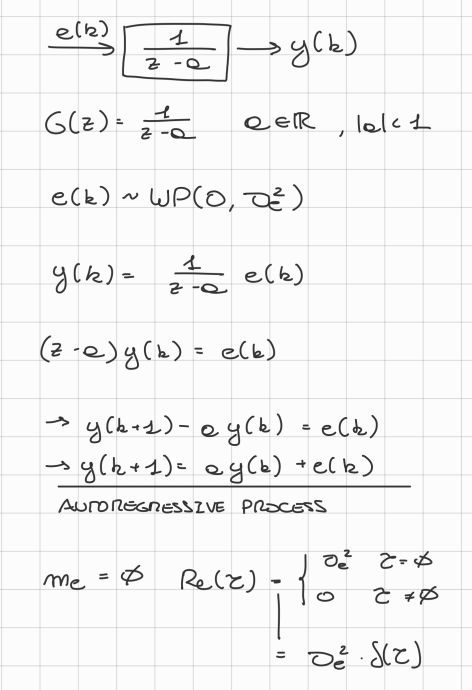

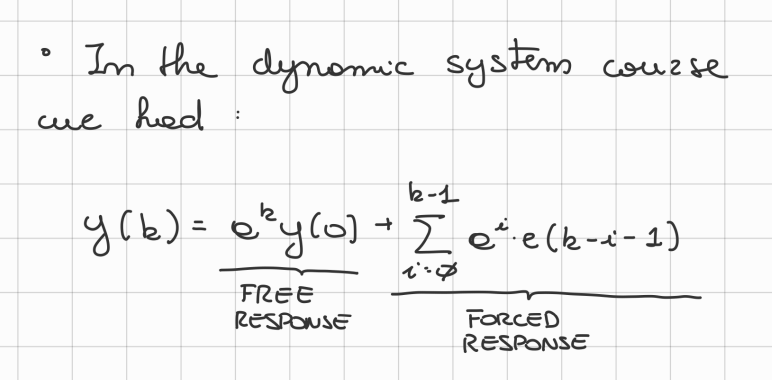

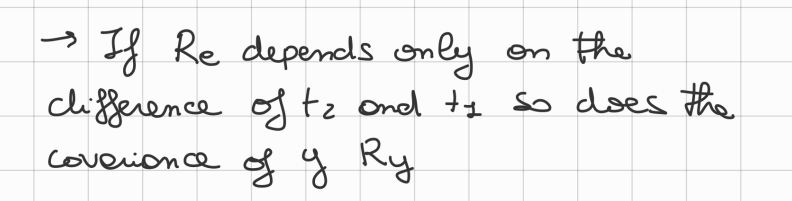

~Ex.: 1st Order System
