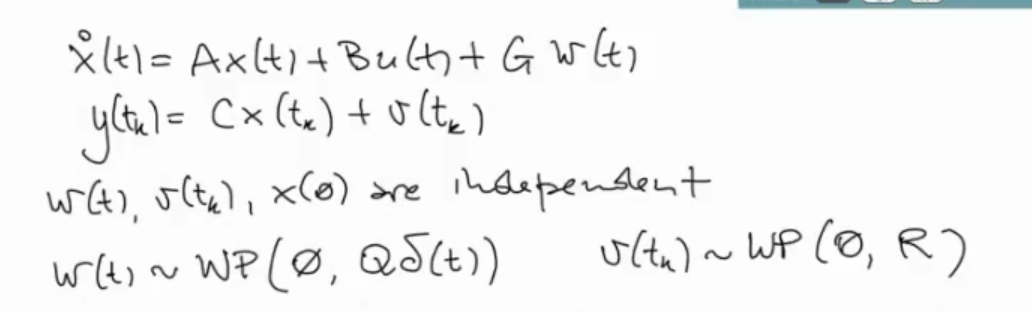

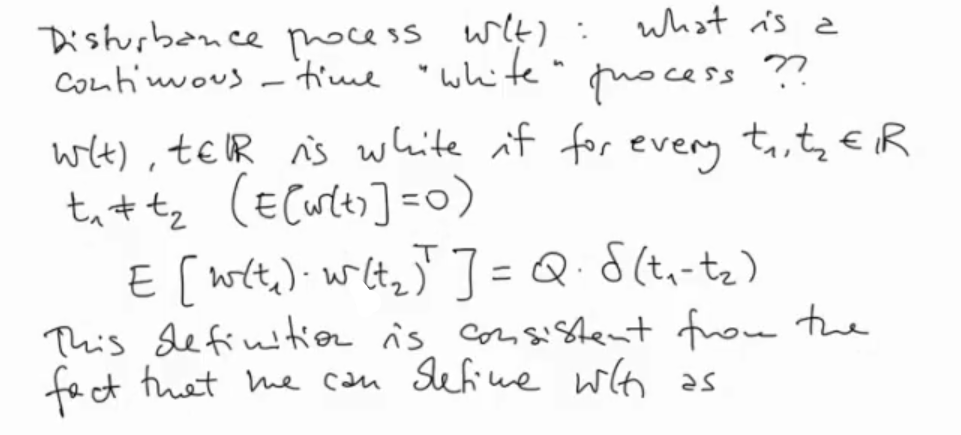

C-D KF Algorithm

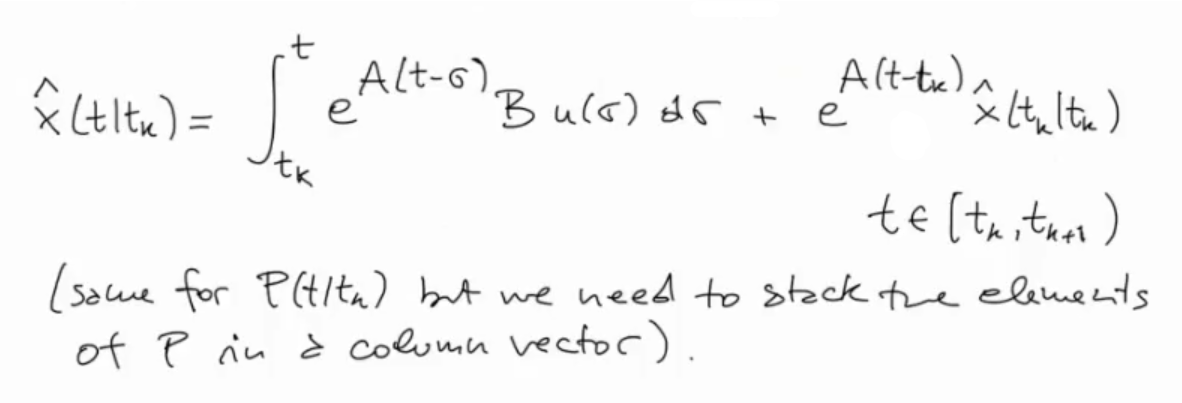

Analytic Solution

The C-D KF has an analytic solution:

---

Algorithm

NOTE: Like the KF the C-D KF provides the LMSE (Least Mean Square Error) estimate $\hat{x}(t|t)$ of $x(t)$.

0. Initialization:

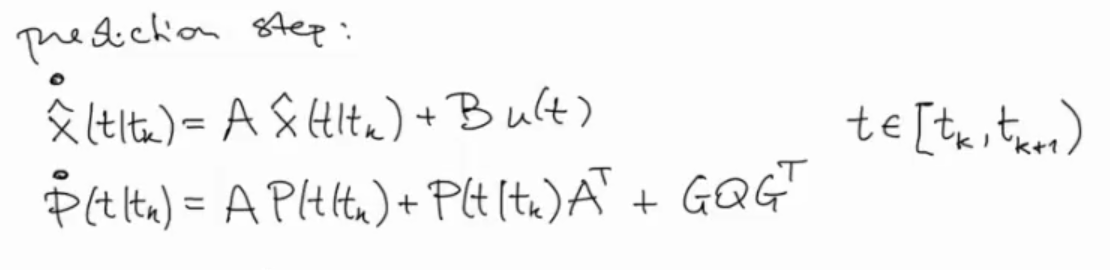

1. PREDICTION STEP:

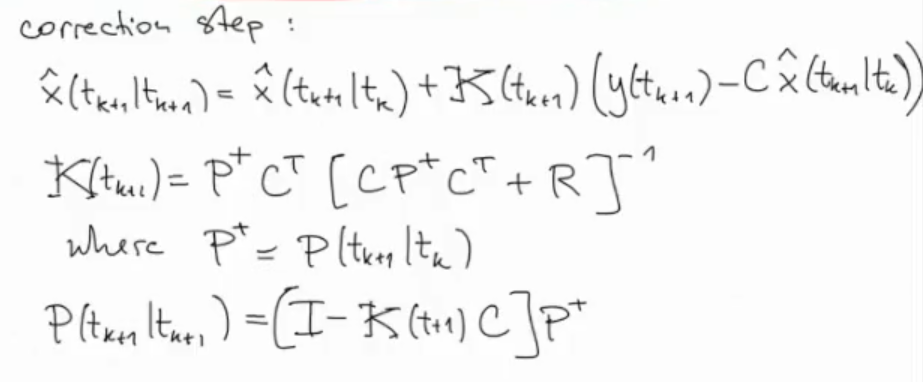

2. CORRECTION STEP:
3. Iterate, restart from point (1.)

---

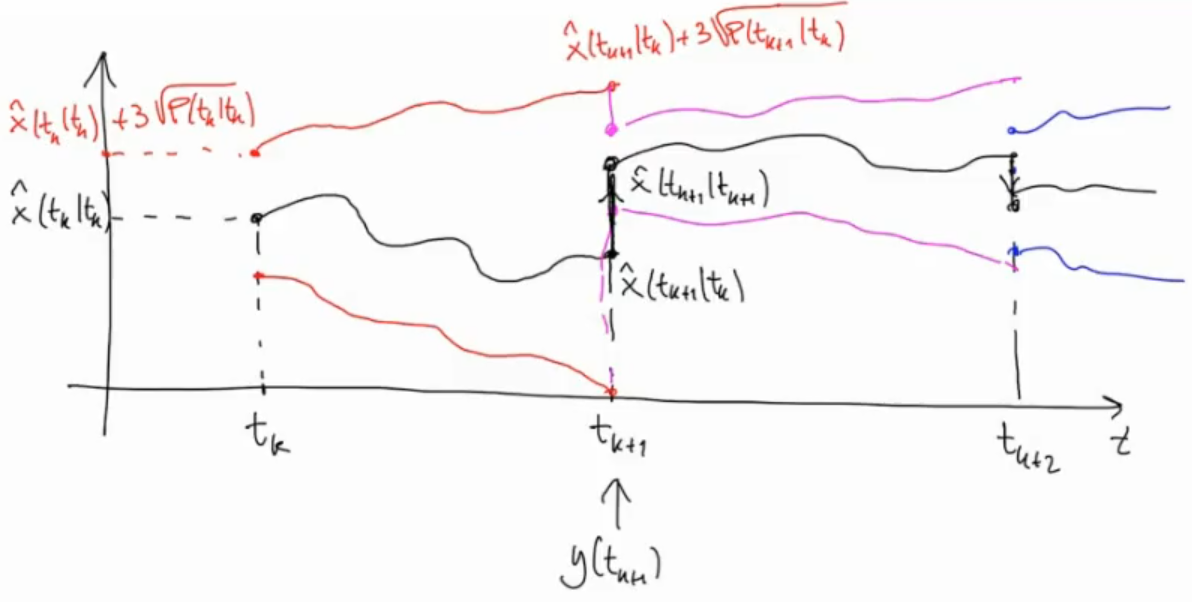

~Example ‘Output of the C-D KF algorithm:‘:
