SI&DA - Definition of 'Spectrum'
SI&DA - Definition of 'Spectrum'
Jul 31, 2024
1 min read

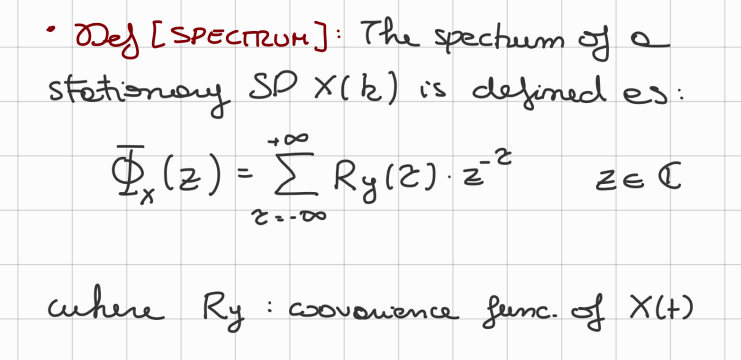

Definition of ‘Spectrum’
