DES - Transient Analysis in Discrete Time
DES - Transient Analysis in Discrete Time
Jul 31, 2024
1 min read

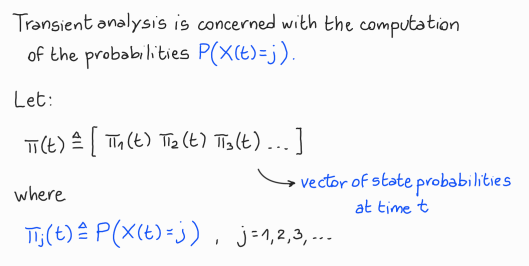

Transient Analysis in Discrete Time

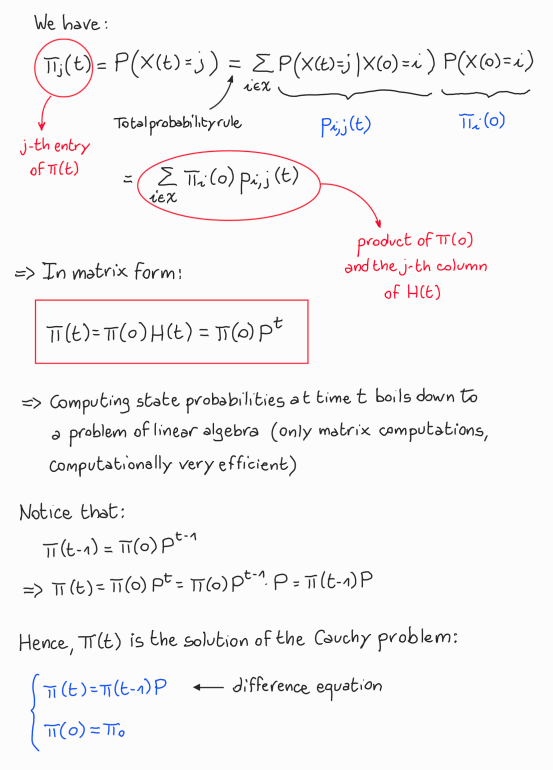

Demonstration
Graph View
Table of Contents
Transient Analysis in Discrete Time
Demonstration
