DES - Chapman Kolmogorov Equation in Discrete Time
DES - Chapman Kolmogorov Equation in Discrete Time
Jul 31, 2024
1 min read
Chapman Kolmogorov Equation in Discrete Time

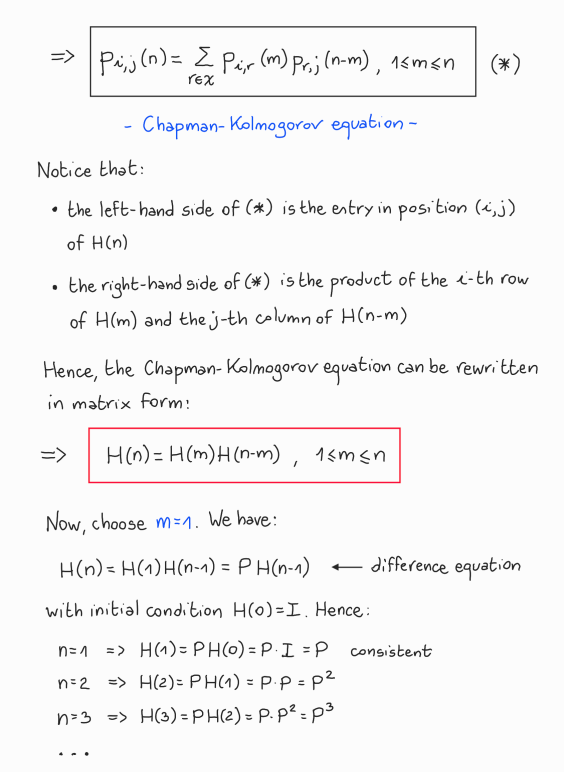

In Matrix Form:

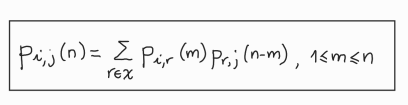

In General:

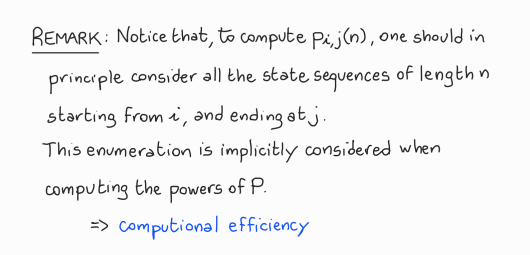

Observation

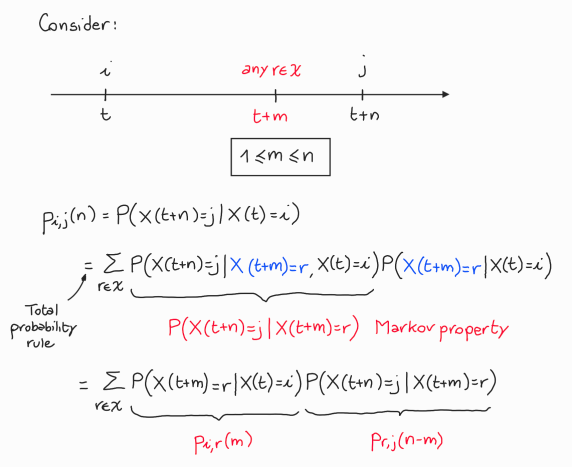

Demonstration:
