DES - Model of a State Automata

Synthesis

A State Automata is a DES where the events are all deterministic, this means that we know the sequence of events that will happen, and we can describe how the system will evolve.

NOTE: We do NOT know when the events will happen, the State Automata does not have a concept of time.

A state automata is described by the 5-tuple: ($\mathcal{E},\mathcal{X},\Gamma ,f,x_0$):

• $\mathcal{E}$ : Event set : $\{e_1,e_2,e_3,\dots \}$.
• $\mathcal{X}$ : State set : $\{x_0,x_1,x_2,\dots \}$.
• $\Gamma$ : Domain : Given a state $x_i$ what are the possible events from that state?
• $f$ : Transition Function : If at state $x_i$, event $e_j$ occurs, at which state will I be then?
• $x_0$ : Initial State.

Also if we want to “monitor” one aspect of the system we can use a State Automata with Outputs, described by the 7-tuple: ($\mathcal{E},\mathcal{X},\Gamma ,f,x_0,Y,g$):

• $Y$ : Output set : $\{y_0,y_1,y_2,\dots \}$.
• $g$ : Transition Function : Given a state $x_i$, what will be my output $y_i$?

---

State Automata

What do we need for defining the model of a Discrete Event System (DES)?

• Events.
• State.
• Transition Function.
  • and it’s domain.
• Initial State.

With these “ingredients” we are ready to introduce the first model class for discrete-event systems:

• Definition of ‘State Automata’.
• Definition of ‘State Automata with Output’.

---

Graphical representation of state automata:

A state automaton ($\mathcal{E}$, $\mathcal{X}$, $\Gamma$, $f$, $x_0$) can be represented as a labelled, direct graph where:

• the nodes are the states in $\mathcal{X}$.

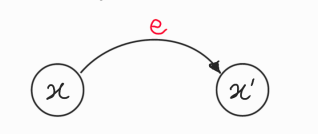

• there is a direct arc from node $x$ to node $x^{\prime }$ with label $e$ if and only if $x^{\prime }=f(x,e)$.
  • ($x$, $x^{\prime }$, $e$, $f$) as defined here.

The initial state $x_0$ is denoted by an arc pointing at the node $x_0$ with no source:

If present, outputs can be represented by labels on the nodes

• there is a label $y$ on node $x$ if and only if $y=g(x)$.

---

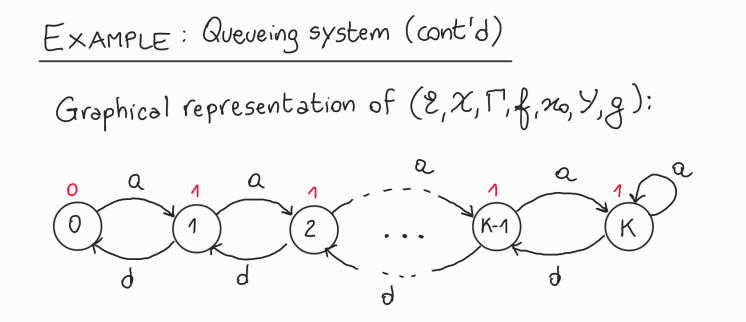

~Example: Queuing system (cont’d):

The system it refers to is given here.

---

What can we do with these models?

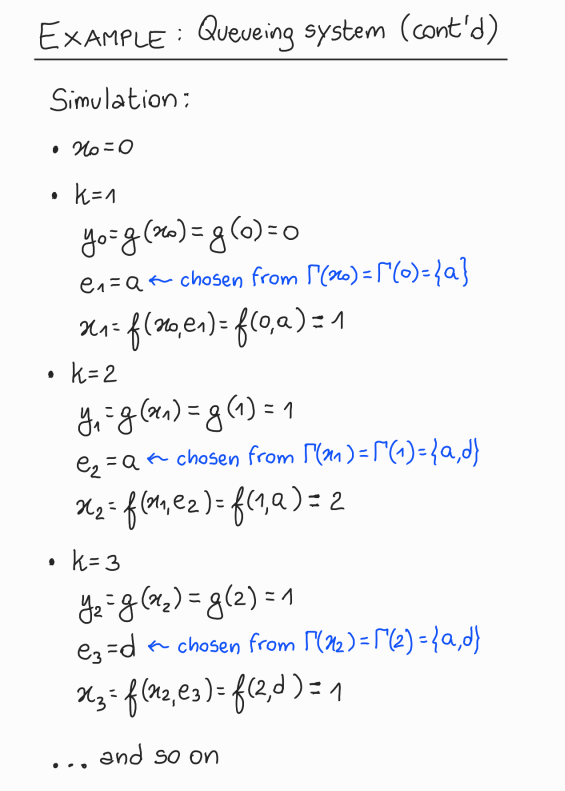

$\to$ Simulation

---

State Automata with Output:

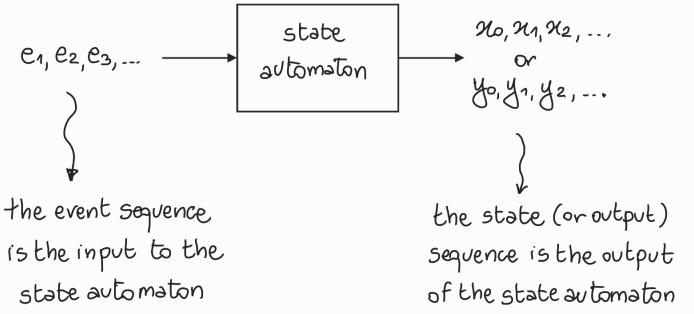

From the input-output point of view, a state automaton can be seen as:

$\Rightarrow$ A Purely Logical Model: given an event sequence, it returns the corresponding state (or output) sequence.

• No information about when events (and therefore state transition) occurs
• This is why a state automata are also called logical (or un-timed) models of discrete event systems.

---

Observation:

For the simulation of a state automaton to not get stuck in a “singularity”, the event sequence provided in input must feasible.

• DES - Definition of ‘Feasible Event Sequence’
