DES - Analysis of Queuing Networks
DES - Analysis of Queuing Networks
Jul 31, 2024
1 min read

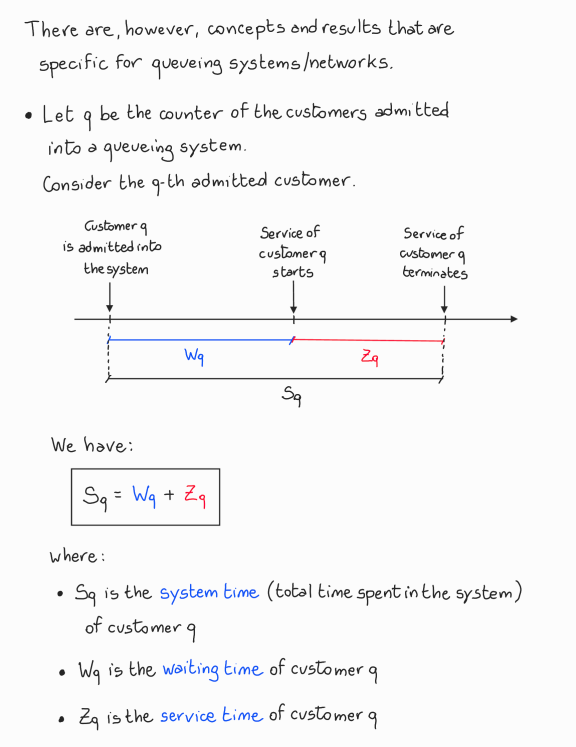

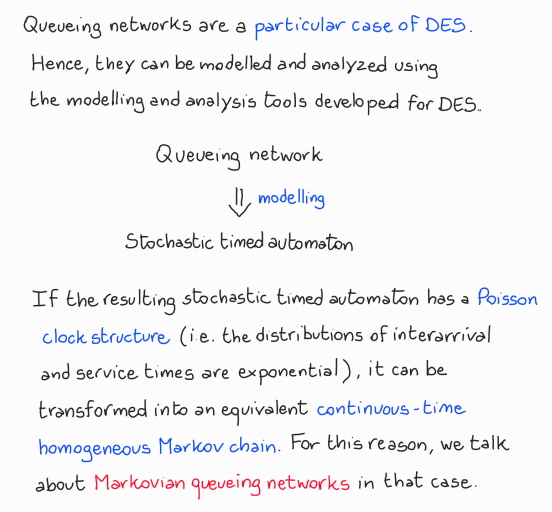

Analysis of Queuing Networks:

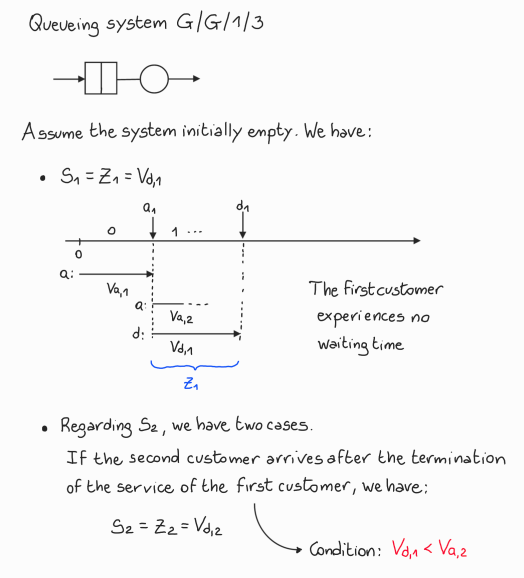

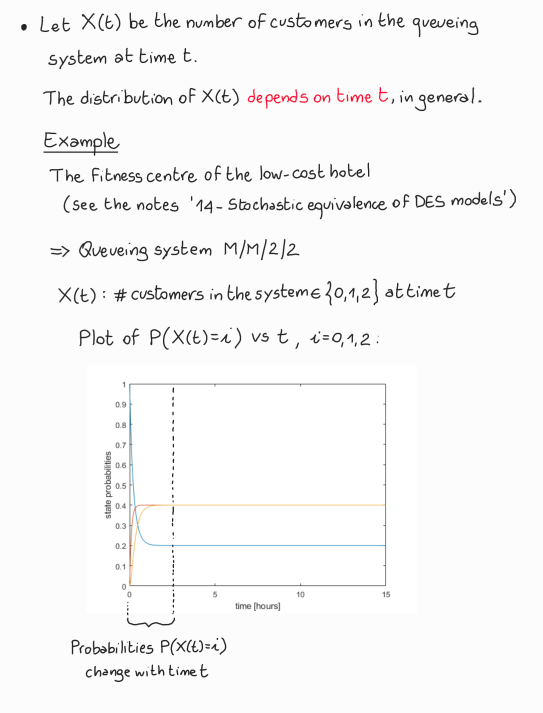

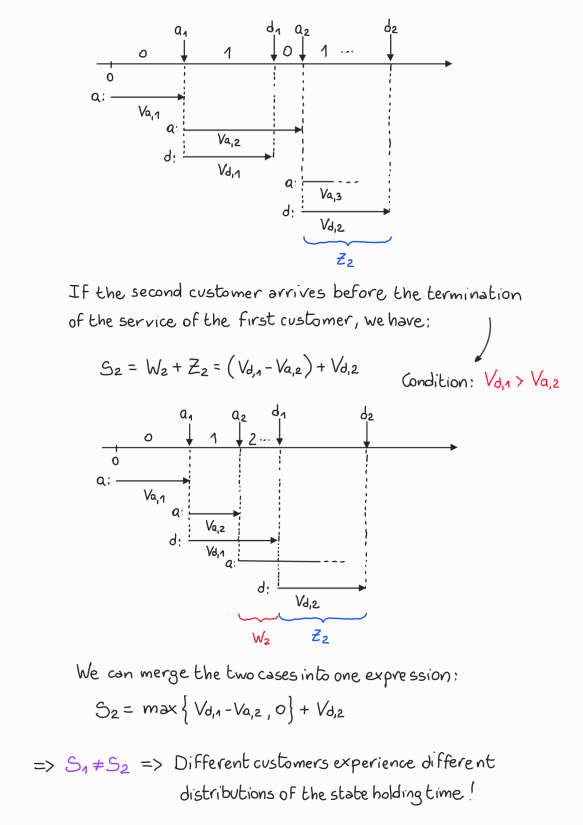

~Example:
