DES - Model of a Timed Automata

Summary

If we know the lifetime of the events in a system, and they are deterministic (~ex.: event $e_{a_1}$ will happen @ 2:30, $e_{b_1}$ @ 2:45, $e_{a_2}$ @ 3:00, $e_{a_3}$ @ 4:20, …), then we can use a Timed Automata to describe the system.

A Timed Automata can be defined using 6-tuple ($\mathcal{E},\mathcal{X},\Gamma ,f,x_0,V$):

• ($\mathcal{E},\mathcal{X},\Gamma ,f,x_0$) : the same as state automata.
• $V$ : Clock Structure (~ following the ex. before: {$V_{a_1}=150s$, $V_{b_2}=15s$, $V_{a_2}=15s$, $V_{a_3}=120s$, …})
  • where: $V_{e_i}$: lifetime of event $e_i$

We define an event dependent on time as: Event $\triangleq$ the outcome of a process.

Event terminology:

• an event is activated, when the corresponding process is started.
• an event is paused, when the corresponding process is stopped temporarily.
• an event is resumed, when the corresponding process is restarted after a pause.
• an event is cancelled (or killed), when the corresponding process is stopped and will not be resumed.
• an event occurs when the corresponding process is terminated.

Score of an event $\triangleq$ how many times the event occurred.

Given a State Automata described by the 5-tuple ($\mathcal{E},\mathcal{X},\Gamma ,f,x_0$): Then we

---

Timed Automata

Expand the State Automata with the concept of time.

• Given a feasible event sequence, the State Automata returns the corresponding state (or output) sequence: $\{y_0{y}_1{y}_2...\}$
• No information about when events (and therefore state transition) occur

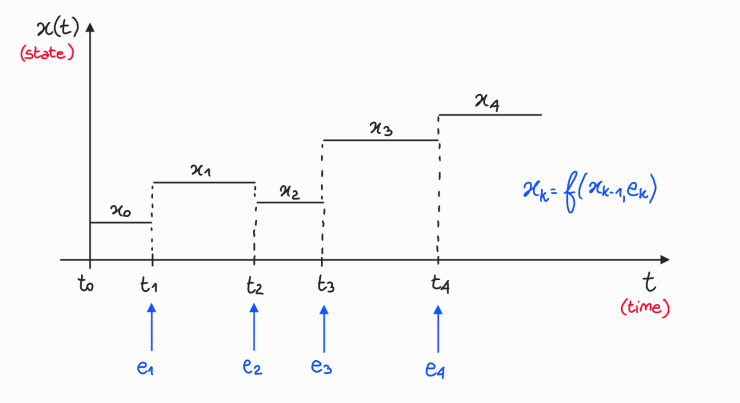

  • Needed for example, to draw the sample path (or state trajectory) of the system:

---

We cannot simply add time at the sequence of events: $\{e_1,e_2,e_3,...\}\to \{e_1(t)e_2(t)e_3(t)...\}$ Because for example if a processor that executes tasks has a FIFO scheduling policy, or a RR one we cannot establish a correct system without this information.

So the time instants when events occur are dependent variables of the DES, they are outputs of the timed models.

Example of a FIFO queue Example of a RR queue

---

Notice that:

• In the previous examples, execution times of each task were independent of the system (they were properties of each task, depending on the number of instructions each task consisted of).
• Conceptually, execution times are total durations of the execution process of each tasks.
• An event d (termination of the execution of a task) occurs at the end of the corresponding execution process.

---

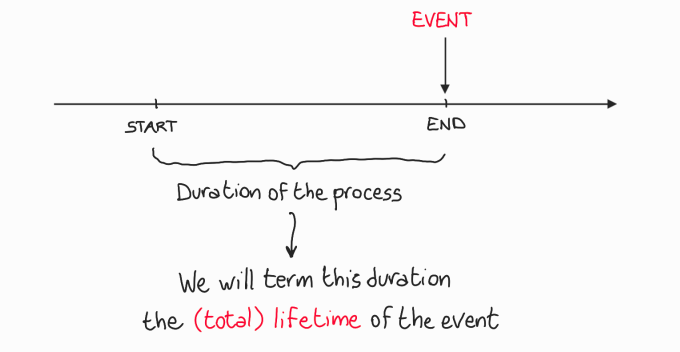

Modelling assumptions:

• An event is the outcome of a process.
• The process is typically unspecified, and described only by its duration.

So we give this definition to Timed Automata

---

Terminology for events

We first introduce some terminology. We say that:

• an event is activated, when the corresponding process is started.
• an event is paused, when the corresponding process is stopped temporarily.
• an event is resumed, when the corresponding process is restarted after a pause.
• an event is cancelled (or killed), when the corresponding process is stopped and will not be resumed.
• an event occurs when the corresponding process is terminated.

---

Score:

DES - Definition of ‘Score’

---

Basic Example of Event Timing Dynamics

---

Note:

When writing an algorithm to simulate a system, we always have to tweak some part of it, NO GENERAL ALGORITHM CAN BE USED FOR SYSTEM SIMULATION.

---

TODO: Rules for transforming a clock structure (input) into a sample path (output):

The following rules define the event timing dynamics of a timed automaton.

---
