DES - Performance Indicators
DES - Performance Indicators
Jul 31, 2024
1 min read

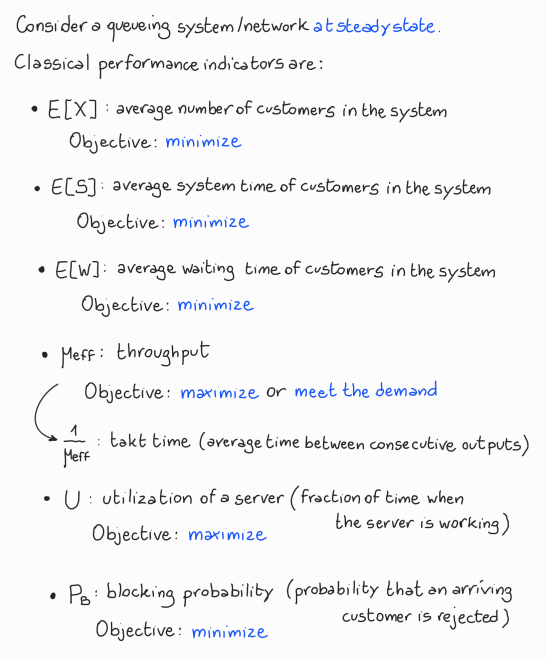

Performance Indicators:

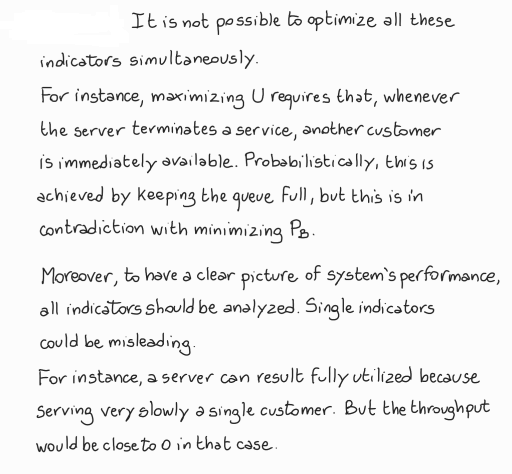

Observation:
Graph View
Table of Contents
Performance Indicators:
Observation:
