DES - Kendal's Notation
DES - Kendal's Notation
Jul 31, 2024
1 min read

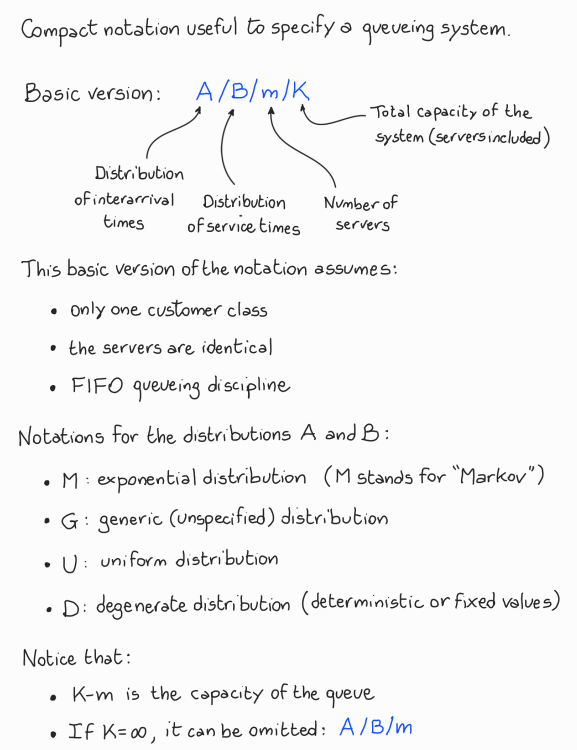

Kendal’s Notation:

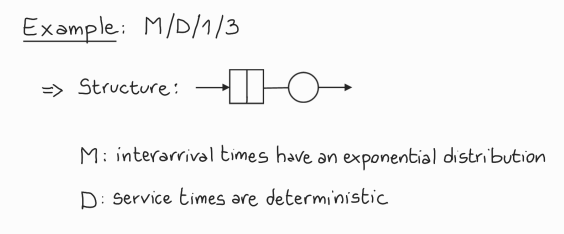

~Example:
