DES - Definition of 'Timed Automata'

Timed Automata:

A timed automaton is a 6-tuple ($\mathcal{E}$, $\mathcal{X}$, $\Gamma$, $f$, $x_0$, $V$), where:

• ($\mathcal{E}$, $\mathcal{X}$, $\Gamma$, $f$, $x_0$) is a state automaton
• $V=\{V_e:e\in \mathcal{E}\}$ is a clock structure
  • $V_e=\{V_{e,1},V_{e,2},V_{e,3},...\}$ is a clock sequence.
  • With $V_{e,i}>0$ the $i$-th lifetime of event $e$

---

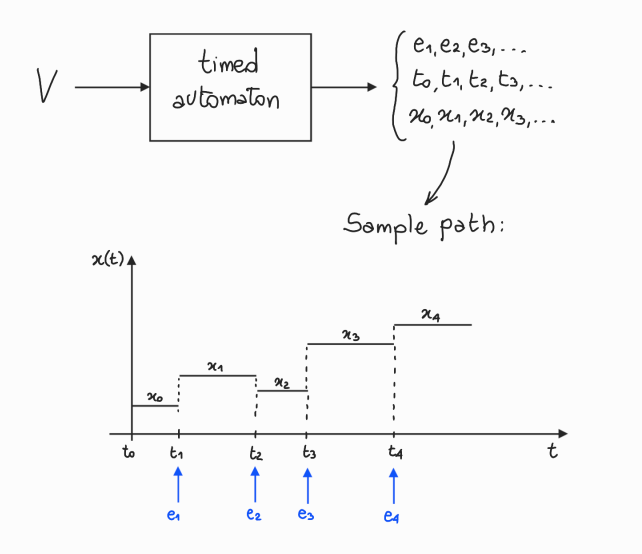

~Example of a Sample Path:

---

~Example of Clock Structures:

DES ~ Example of a FIFO Clock Structure DES ~ Example of a RR Clock Structure
