DES - Definition of 'Periodic and Aperiodic States' in Discrete Time
DES - Definition of 'Periodic and Aperiodic States' in Discrete Time
Jul 31, 2024
1 min read

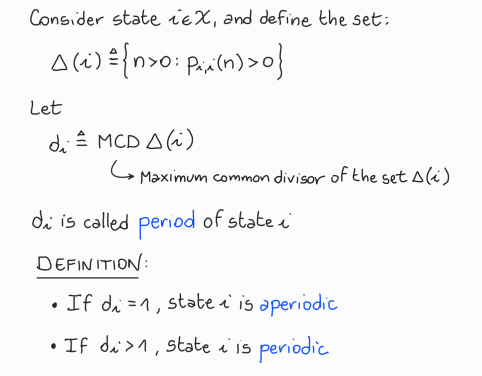

Periodic and Aperiodic States

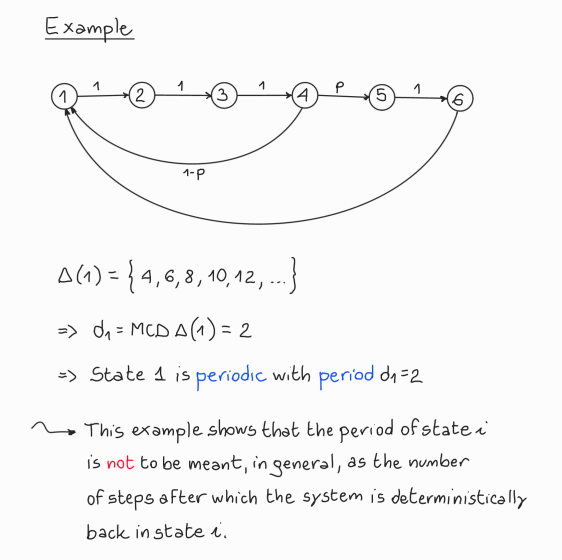

Example:
Graph View
Table of Contents
Periodic and Aperiodic States
Example:
