DES - Definition of 'Period of a DTHCM'
DES - Definition of 'Period of a DTHCM'
Jul 31, 2024
1 min read
Period of a DTHCM

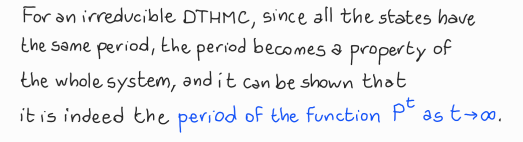

Theorem:

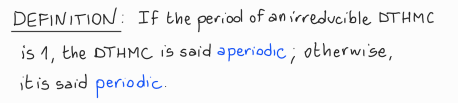

Observation:

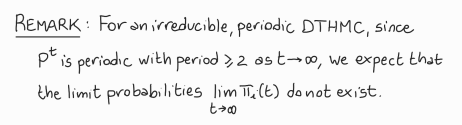

Observation:

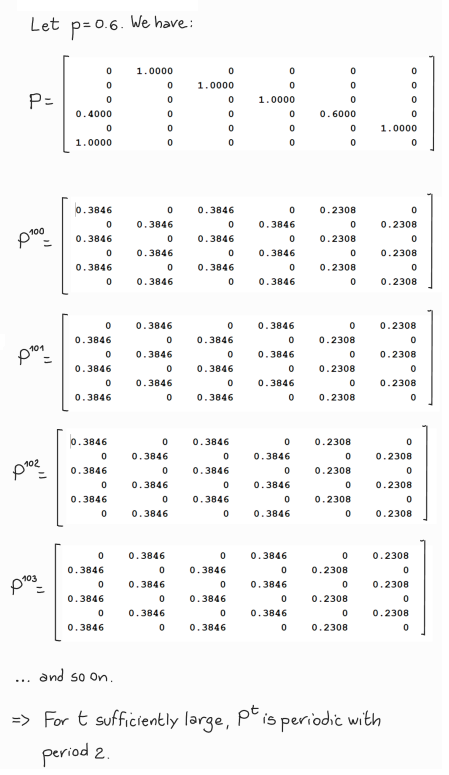

Example:
Graph View
Table of Contents
Period of a DTHCM
Theorem:
Observation:
Observation:
Example:
