ML - Lecture 12

Rosenblatt’s Perceptron Algorithm

Given a training set $\mathcal{L}$ with targets $y_i$ taking values $\pm 1$, find $\hat{w}$ and $t$ such that the hyperplane perpendicular to $\hat{w}$ correctly separates the examples and $t$ is the number of times that $\hat{w}$ is updated.

1. INITIALIZE: Set ${\hat{w}}_0\leftarrow 0$, $t\leftarrow 0$, $j\leftarrow 1$, and $m\leftarrow 0$.
2. NORMALIZE: Compute $R$ for all $i=1,\dots ,l$ set ${\hat{x}}_i\leftarrow ({\hat{x}}_i,R{)}^T$.
3. CARROT OR STICK ?: If $y_j{\hat{w}}^T{\hat{x}}_j\le 0$, set $\hat{w}\leftarrow \hat{w}+\eta y_j{\hat{x}}_j$, $t\leftarrow t+1$, $m\leftarrow m+1$.
4. ALL TESTED ?: Set $j\leftarrow j+1$; If $j\ne l$ go back to step 3.
5. NO MISTAKES ?: If $m=0$, the algorithm terminates; set $\hat{w}\leftarrow (w,b/R)$ and return $(\hat{w},t)$.
6. TRY AGAIN: Set $j\leftarrow 1$, $m\leftarrow 0$, and go back to step P3.

$y_j{\hat{w}}^T{\hat{x}}_j\le 0$ : because $y_i$ can only be $-1$ or $+1$, (two classes), the classification in this case is defined as sign agreement, because the supervisor stop the algorithm only when the sign agrees ($y_j{\hat{w}}^T{\hat{x}}_j>0$)

This algorithm can also be seen as a NN where the activation function is the sign function

---

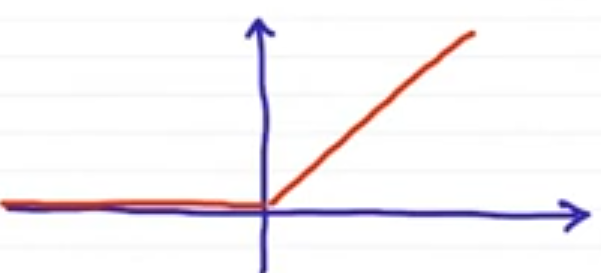

ReLU

Rectified Linear Unit

Another activation function that can be substituted to the sigmoid function.

Prevents saturation for $a>0$ but not for $a<0$.

Also note that the derivate for $a=0$ doesn’t exist. So we have to directly specify its value in the code (not too difficult)

---

Robust Linear Separation

The Rosenblatt’s perceptron algorithm perform a robust linear separation

Robust because all the points are divided from the linear separation by a factor of $\delta$ (distance), this value is not known at prior, it can be found as the $\min$ of the distances from the line of linear-separation and all the points.

Also from calculations and theorems we get that the number of steps $t$ that allow the algorithm to find the perfect solution will be:

$$t\le 2{\left(\frac{R}{s}\right)}^2$$

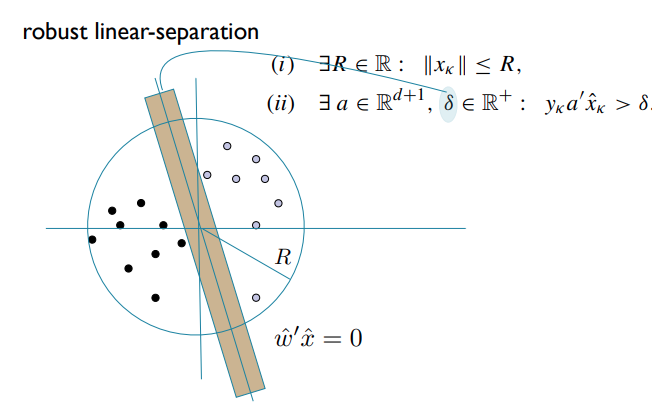

Where R is the radius of the space occupied by the points, as shown in the figure.

---

Linear Separation with more variables

Let’s now get an intuition on why having more features can increment the possibility of finding linear-separation in the data.

Do do this let’s see to the opposite case.

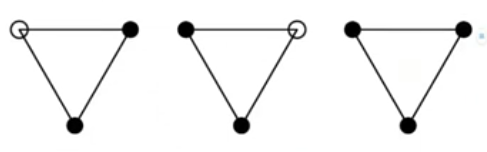

Take 3 point in a 2D plane:

All of this can be linearly separated by a single line Also even if we project them in a 1D plane they can still be linearly separated:

First one for example:

So this can all be linearly separated

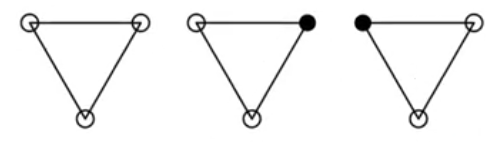

Now take for example this points and their projection:

Notice how the 3 point in the 2D plane can be linearly separated, while the points projected in the 1D plan cannot
